Description

This is a production quality hand crimp tool that can be purchased for the terminals listed below.

If you wish to buy more than the available quantity listed, please email us at sales@bmotorsports.com so that we can assist you with your order.

Once out of stock, the part will be listed as "Special Order" and is subject to 8-12 weeks standard lead time.
The part may however already be on order and due to arrive sooner, feel free to contact us for more details.

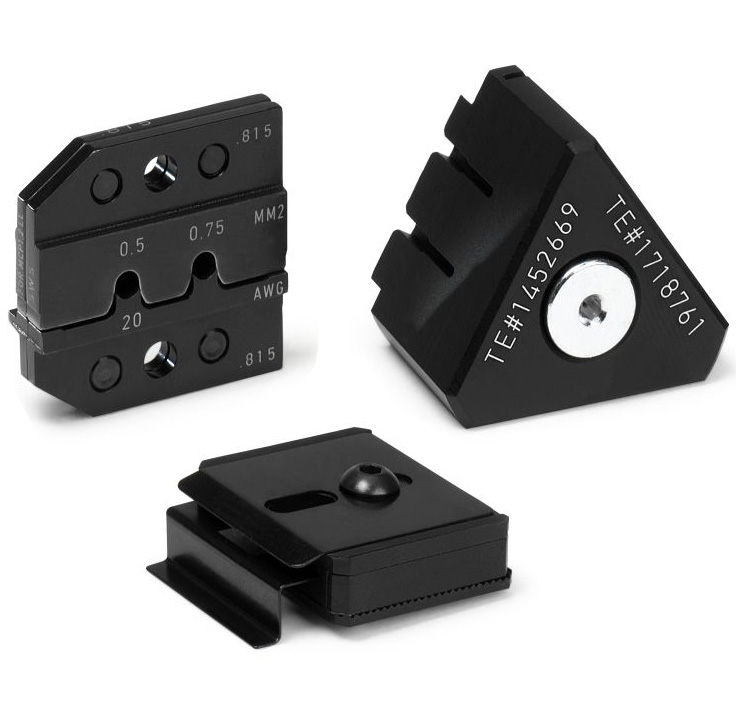

Complete box with 1 die set, 1 locator, spare parts and reference data sheet for crimping of TE MCON 1.2 and Kostal MLK 1.2 Male and Female Terminals for 20 - 18AWG (0.5mm2-0.75mm2) SWS (Single Wire Seal version), Crimp die set # 624 815 3 012 RT


Must be used with the following crimp handles:
Production Quality Hand Crimper

Example pictures of crimper with dies are below. Crimper is sold seperately.




Cross References

Female Terminal, CONN-100713 CONN-100713

Male Terminal, CONN-100714 CONN-100714
,

Terminal technical info:

Terminal P/N	1452504, CONN-100713, CONN-101047	1718761, CONN-101048, CONN-100714
Cable Range SQ-MM	0.50 - 0.75
Cable Range AWG	20 - 18
Insulation Range mm	1.40 - 1.90
Insulation Range Inch	0.055 - 0.075
Gender	Receptacle
