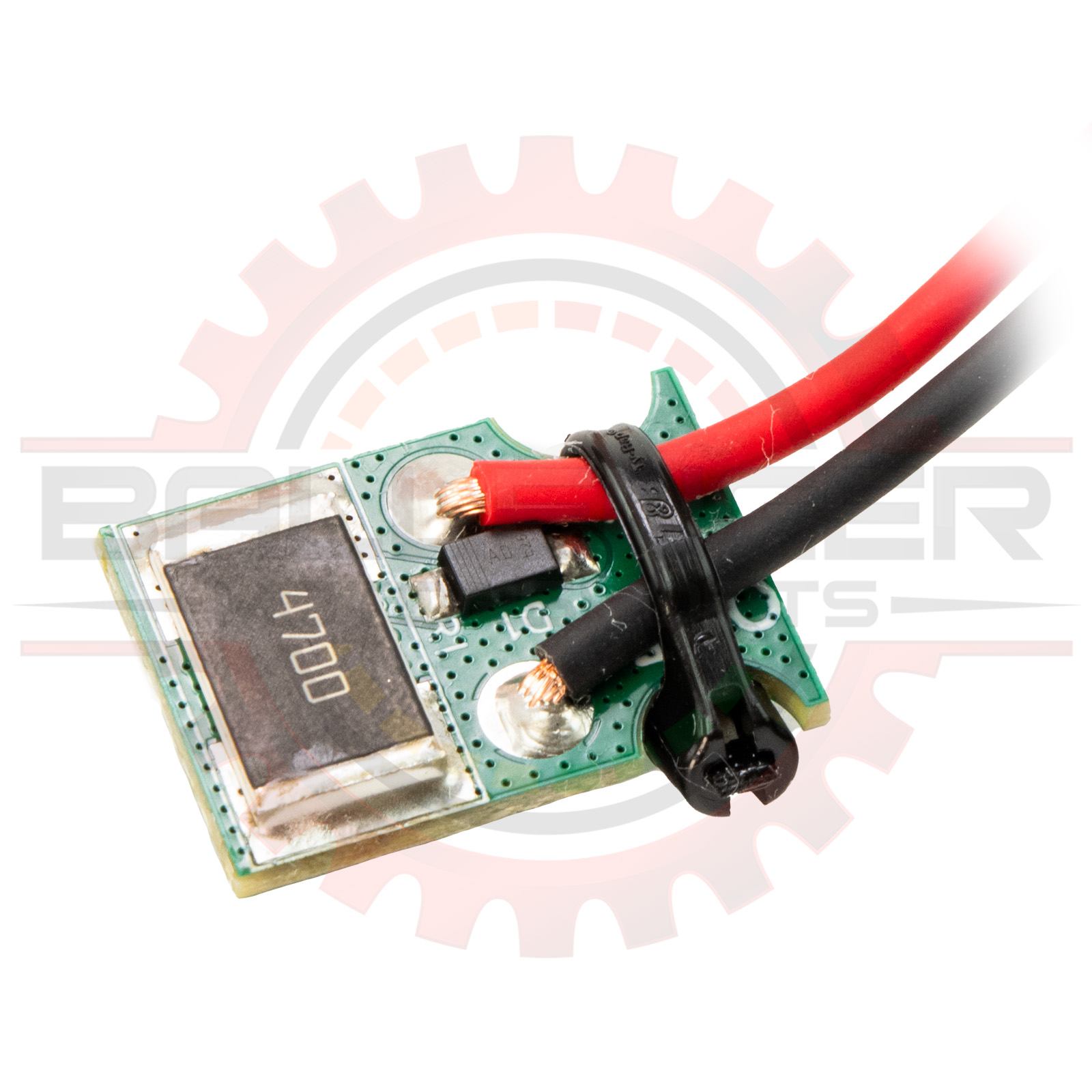

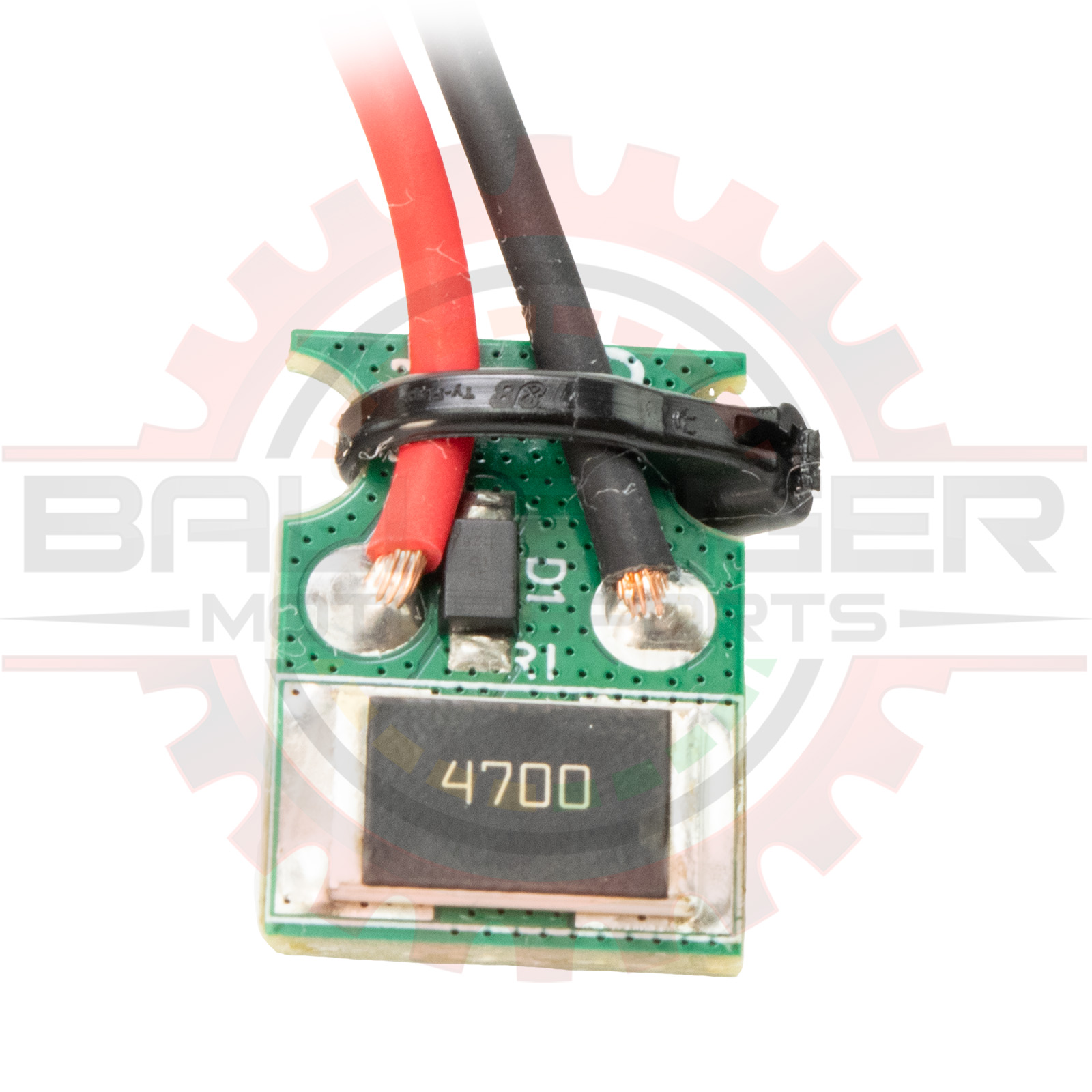

Resistor Load Board for Alternators, Fuel Pumps, Gauge Clusters, & More Part # CONN-101344
Resistor Load Board for Alternators, Fuel Pumps, Gauge Clusters, & More Resistor Load Board for Alternators, Fuel Pumps, Gauge Clusters, & More Resistor Load Board for Alternators, Fuel Pumps, Gauge Clusters, & More
Pricing
1 + $4.99
Information
Bmotorsports Part # CONN-101344
Availability In Stock
Shipping Weight 0.03 Lbs.
Shipping Location VA   (Shipping Info)
Options
Ω
Harness Length
Wire Size
Ship Estimator Quantity:

Description

Resistor Load Board for Alternators, Fuel Pumps, Gauge Clusters, & More. Some cars require a load resistor to provide a feedback signal for an alternator, gauge clusters, fuel pumps, lighting, & other use cases. Zip Tie included. Finish in harness with heat shrink or other appropriate covering.

The resistor is 6 W capable. This means you can run a load resistor as low as 35Ω. A high voltage, high power diode is also included for flyback protection and to meet the specifications set for some load applications. The board can accept 12AWG - 16AWG. We currently have 470Ω & 180Ω available as standard options. 100Ω & 62Ω will be available soon with an aluminum heat sink as the additional power requirements demand more thermal dissipation.

Custom resistor values available.

Click here for information on how to properly test diodes
