Description

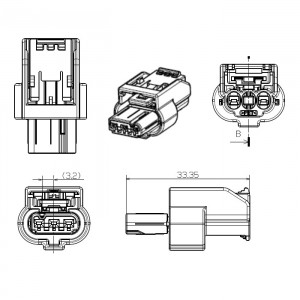

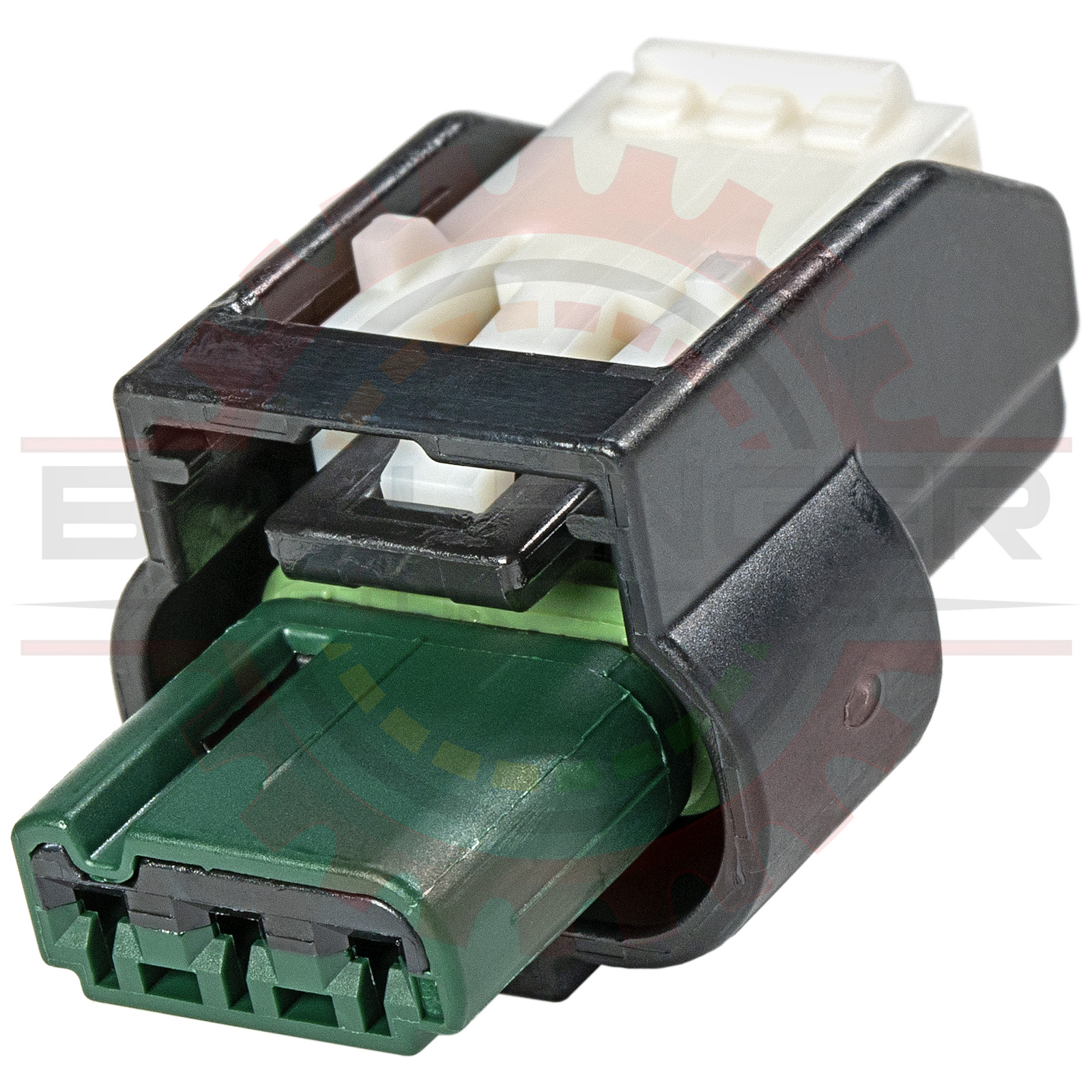

3 Way Connector Plug with D Keyway Ford Applications. Connector ONLY. Terminals and seals not included.
Please note: There are a few versions of this connector utilizing a slightly different terminal variation.
Used on keyway D variant ignition coil applications on some Ford applications, and more not listed here. Often times one of the three cavities (normally the middle) is blocked off in the connector mold. you can do the same with a cavity plug in the middle of this to "create" EU5T-14A464-ACA-001
Used for Motorcraft pigtail number WPT1602

Associated & Mating Parts

Applications

Applications:

• Ford Mustang GT500 Supercharged 5.2L Ignition coil connector
• Ford Coyote Supercharged 5.2L Ignition coil connector
• Ford # EU5T-14A464-ACA-000
• Also works as Ford # EU5T-14A464-ACA-001 when a cavity plug is used in position 2

Specifications

Parameter	Value
Number of Ways	3
Gender	Plug/Male
Terminal Size	1.2mm
Terminal Type	Flat
Min. Wire Gauge	24
Max. Wire Gauge	18
