18 Way Toyota MR2 EA3 Rear Fuse Box Junction Connector Kit	Part # CONN-76247

Pricing
1 +	$9.99
10 +	$9.49
100 +	$8.99
500 +	Call for Pricing
Information
Bmotorsports Part #	CONN-76247
Availability	In Stock
Shipping Weight	0.02 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

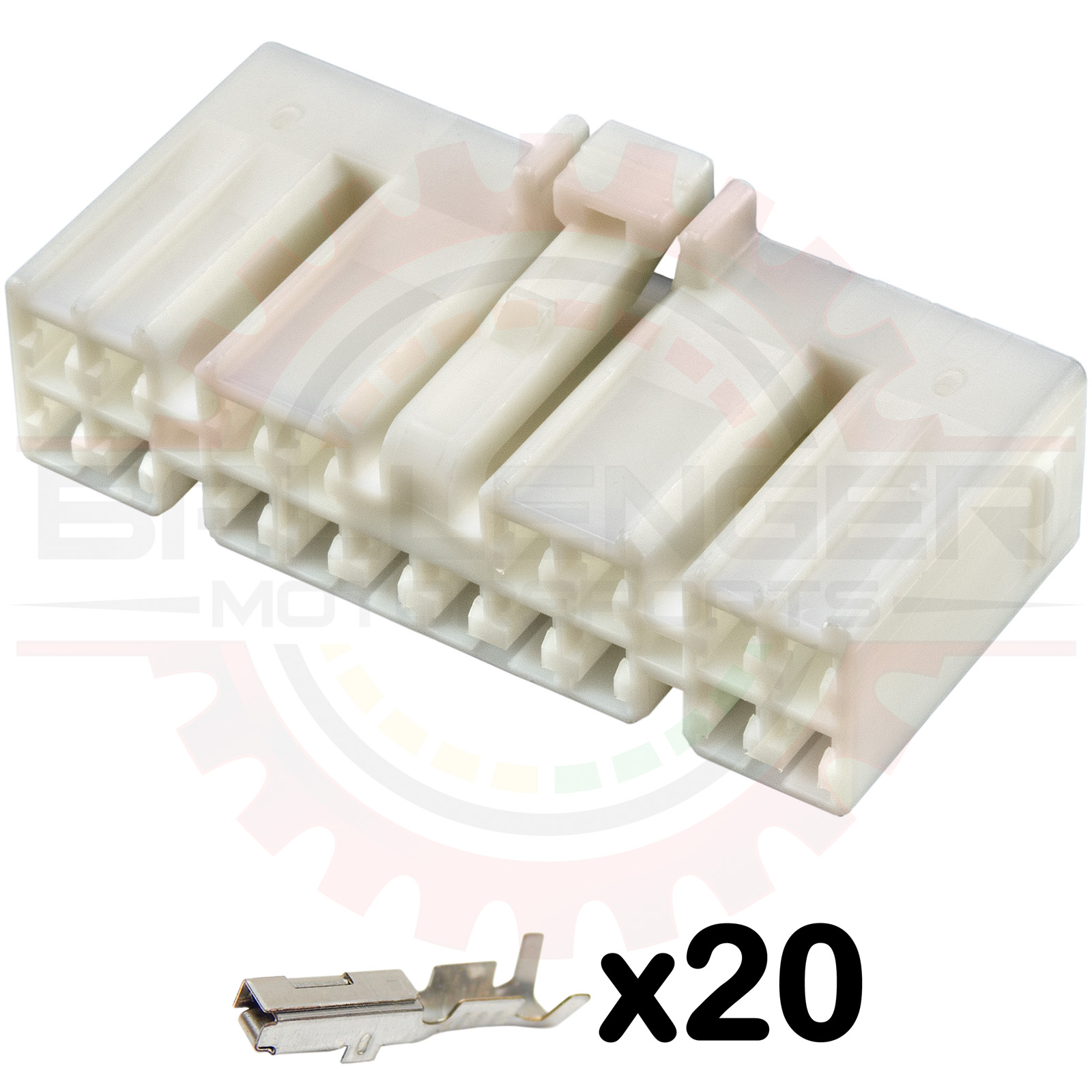

18 Way Toyota MR2 EA3 Rear Fuse Box Junction Connector Kit. Connector Kit. Terminals are included.

This 18 Way Junction Connector Plug connects the engine harness to the chassis through the rear fuse box on Toyota MR2 engines. These are often found broken, cut, mangled or lost. Sometimes these break when being pulled, during race use, or a user needs to make a new harness for engine conversions. Toyota # 90980-10819, 90980-11704, 90980–10819, 90980–11704

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
18 Way EA3 Connector	CONN-101331	18 Way Toyota MR2 EA3 Rear Fuse Box Junction Connector 90980-10819, 90980-11704
12 Way EA1 Connector	CONN-101332	12 Way Toyota MR2, Soarer EA1 Rear Trunk Junction Connector
18 Way EA3 Connector Kit	CONN-76247	18 Way Toyota MR2 EA3 Rear Fuse Box Junction Connector Kit
12 Way EA1 Connector Kit	CONN-76248	12 Way Toyota MR2 EA1 Rear Trunk Junction Connector Kit
18 Way EA3 Connector Pigtail	CONN-86247	18 Way Toyota MR2 EA3 Rear Fuse Box Junction Connector Pigtail
12 Way EA1 Connector Pigtail	CONN-86248	12 Way Toyota MR2 EA1 Rear Trunk Junction Connector Pigtail
090-ll non waterproof type 2.3mm female terminals	CONN-100800	Sumitomo TS / SL / DL 090 Unsealed Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )

Applications

MR2 EA3 connector plug
Toyota Connector 90980-10819, 90980-11704
Toyota Connector 90980–10819, 90980–11704
Some other applications not specifically listed

Specifications

Parameter Value
Number of Ways 18
Gender Plug/Male
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

This product contains the following items:
	» 20 x Sumitomo TS / SL / DL 090 Unsealed Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG ) Part # CONN-100800
	» 1 x 18 Way Toyota MR2 EA3 Rear Fuse Box Junction Connector 90980-10819, 90980-11704 Part # CONN-101331
