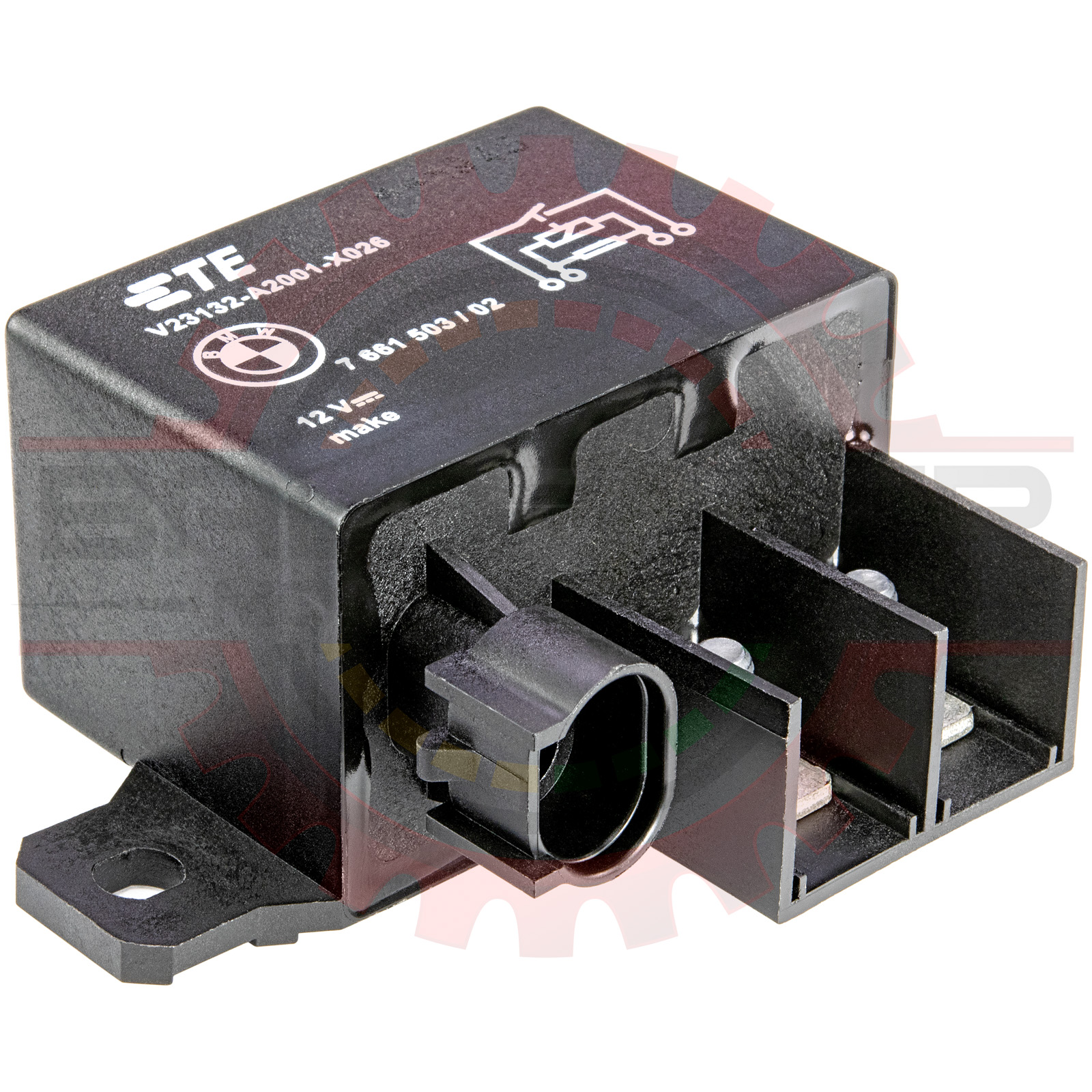

TE High Current Relay, Weathersealed, 75A Part # CONN-34000
TE High Current Relay, Weathersealed, 75A TE High Current Relay, Weathersealed, 75A TE High Current Relay, Weathersealed, 75A TE High Current Relay, Weathersealed, 75A TE High Current Relay, Weathersealed, 75A
Pricing
1 + $43.00
10 + $39.99
25 + $37.99
Information
Bmotorsports Part # CONN-34000
Availability In Stock
Shipping Weight 0.48 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

TE High Current Relay, Weathersealed, 75A

the 75A continuous rating is a very conservative figure, as the relay is capable of 180A @ 25°C with a 25mm² (4 AWG) cable, which falls to 135A @ 85°C, and for 16mm² (6 AWG) cable, 130A @ 23°C and 120A @ 85°C

Product Highlights

  • Limiting continuous current 130A @ 85°C
  • Current Switching ability up to 300A
  • Suitable for voltage levels up to 24VDC
  • Heat, moisture and vibration resistant
  • Minimal contact resistance


Associated & Mating Parts

Relationship Part # Description
Associated Parts
Connector CONN-1013422 Way Tyco Super Seal 1.5 Connector for High Power Relay Connection
Terminals CONN-101343Tyco Super Seal 1.5 Female Terminal
Seals CONN-56057GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Cavity Plug CONN-56057GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Relay CONN-34000TE High Current Relay, Weathersealed, 75A
Relay Kit CONN-35000TE High Current 75A Relay Kit
12-10 AWG Sealed Ring Terminals CONN-668501/4 in. Insulated Ring Terminal, 12 - 10 gauge
8 AWG Sealed Ring Terminals CONN-100791Molex Perma-Seal Ring Terminal, 8 AWG, 1/4" Stud, Heat Shrink Insulated
6 AWG Tinned Copper Eyelets CONN-100790Tinned Copper Eyelet for 6 AWG, 1/4" Stud, bare

Specifications

Normally Open High Current TE Relay
Parameter Value
Terminal Size1.5mm
Terminal TypeFlat


Used In

Part # Description
CONN-35000TE High Current 75A Relay Kit
