ND Miata MX-5 TMAP to Bosch TMAP Sensor Adapter	Part # CONN-86223

Pricing
1 +	$49.99
50 +	$44.99
250 +	$43.99
1000 +	Call for Pricing
Information
Bmotorsports Part #	CONN-86223
Availability	In Stock
Shipping Weight	0.015 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

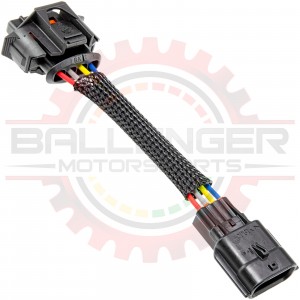

ND Miata MX-5 TMAP to Bosch TMAP Sensor Adapter

This adapter allows 2016+ Mazda MX-5 ND owners to utilize the standard Bosch TMAP sensors available. We carry the whole line of TMAP sensors as listed in the mating parts tab. Note that any change in the TMAP sensor will require retuning so that the ECU recognizes the correct pressure readings.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Connector only	CONN-100245	4-way sealed Plug Bosch BSK Connector for Bosch MAP Sensor (Connector ONLY!)
Terminals	CONN-11561	Bosch Female BDK Terminal for 0.5 - 1.0mm2 ( 20 - 16 gauge)
Seals	CONN-11562	Bosch BDK Seal for 0.5 - 1.0mm2 ( 20 - 16 gauge)
Connector kit	CONN-75722	4-way sealed Plug Bosch BSK Connector Kit for Bosch MAP Sensor
Connector Pigtail	CONN-85722	4-way sealed Plug Bosch BSK Connector Pigtail for Bosch MAP Sensor
Connector only	CONN-100720	Mate to 4 Way Ford / Mazda MAP Pressure Sensor Connector
Terminals	CONN-56260	GM Delphi / Packard - Sealed Metri-Pack 150 ( Metripack ) Male Terminal ( 20 - 16 gauge )
Seals	CONN-56057	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Connector kit	CONN-75851	Mate to 4 Way Ford / Mazda MAP Pressure Sensor Connector Kit
Connector Pigtail	CONN-85851	Mate to 4 Way Ford / Mazda MAP Pressure Sensor Connector Pigtail
Bosch TMap Extension	CONN-85827	4 Way Sealed Receptacle Bosch BSK Connector Extension for Bosch MAP Sensor
Mating Parts
Mating Sensors
Bosch 1 Bar TMap MAP Sensor	SNSR-03091	Bosch 1 Bar TMap Map Sensor with IAT
Bosch 2.5 Bar TMap MAP Sensor	SNSR-03083	Bosch 2.5 Bar TMap Map Sensor with IAT
Bosch 3 Bar TMap MAP Sensor	SNSR-03085	Bosch 3 Bar TMap Map Sensor with IAT
Bosch 3.5 Bar TMap MAP Sensor	SNSR-03088	Bosch 3.5 Bar TMap Map Sensor with IAT
Bosch 4 Bar TMap MAP Sensor	SNSR-03089	Bosch 4 Bar TMap Map Sensor with IAT

Specifications

Parameter Value
Number of Ways 4
Terminal Size 2.8mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16
