Description

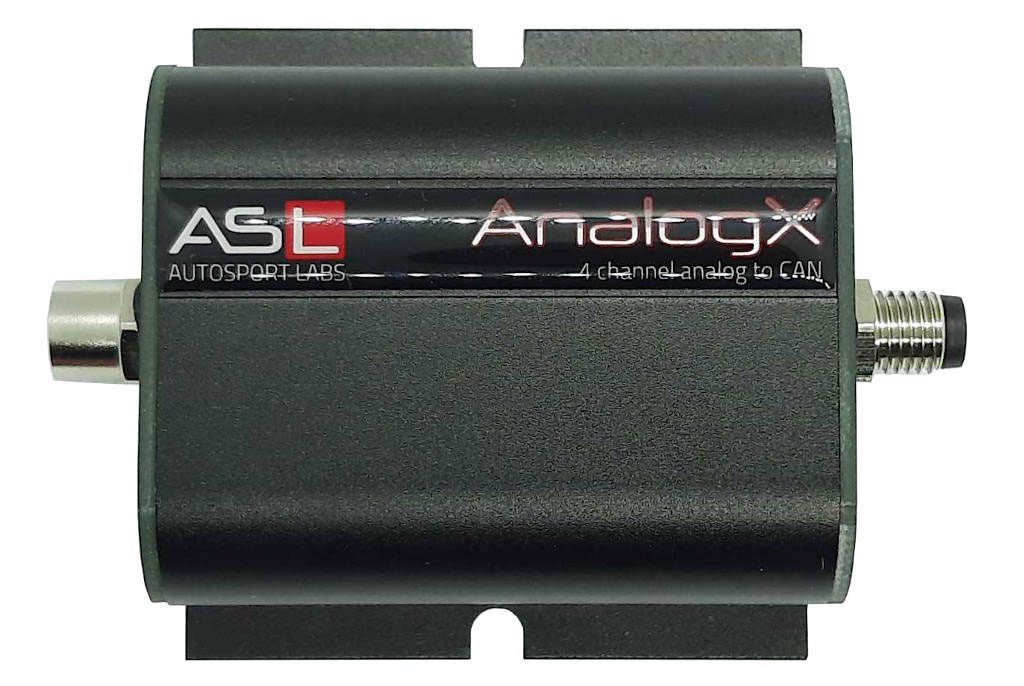

AnalogX is a compact 4 channel analog to CAN bus I/O expander, ruggedized and hardened for automotive and industrial applications.

AnalogX provides 4 buffered and protected 0-5v sensor inputs and can broadcast the sensor values between 1 and 255Hz. It also provides a 0.5A 5v reference for powering sensors.

• Rugged and sealed Industry-standard M8 connectors for CAN/Power and sensors
• Compact and environmentally protected design; IP65 rating
• Compatible with our plug and play harness system (cables available separately)

Specifications:

• Analog sensor input voltage range: 0 - 5v
• DAC resolution: 12 bit SAR
• Sample output format: 0 - 5000mV
• Input impedance: Greater than 10 Meg Ohm
• Input voltage protection: 100v
• CAN baud rate: 1M and 500K, jumper configurable
• Address Space: 4 separate address spaces allows up to 4 AnalogX modules to operate on the same CAN network. (DIP switch configurable)
• Power input and connections: 9 - 15volts, protected to 40v (intermittent)
• Harness: M8 4P Male for power + ground, M8 8P for sensor connection
• Weight: 5 oz (approximately)
• Dimensions: 60 x 60 (approximately)
• Environmental: IP65, 0-85C
