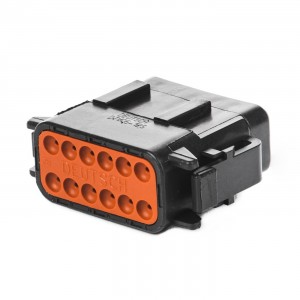

Deutsch DTM/ATM 12 Way Connector Plug Pigtail, Black Keyway B	Part # CONN-86266

Pricing
1 +	$14.99
Information
Bmotorsports Part #	CONN-86266
Availability	Special Order
Shipping Weight	0.025 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

Deutsch DTM/ATM 12 Way Connector Plug Pigtail, Black Keyway B. Preassembled including connector, lock, seals, and terminals with 12in/305mm crimped wire leads. A completed pigtail is provided.
Fits connector B on the 10 Signal AXIOMATIC Universal CAN Controller AX030120

Associated & Mating Parts

Relationship	Part #	Description
Associated Part
Terminal	CONN-100090	Deutsch DTM Size 20 Solid Socket Female Nickel Plated Terminal, 0.5mm2 (20AWG)
Terminal	CONN-100025	Deutsch DTM Size 20 Stamped & Formed Socket Female Terminal, 0.5mm2 - 1.0mm2 ( 20 - 16 AWG )
Connector	CONN-100493
Connector Kit	CONN-76266
Connector Pigtail	CONN-86266	Deutsch DTM/ATM 12 Way Connector Plug Pigtail, Black Keyway B
Mating Connector
Terminal	CONN-100089	Deutsch DTM Size 20 Solid Socket Male Nickel Plated Terminal, 0.5mm2 (20AWG)
Terminal	CONN-100088	Deutsch DTM series Size 20 Stamped & Formed Pin Male Nickel Plated Terminal, 0.5mm2 - 1.0mm2 ( 20 - 16 AWG )
Connector	CONN-100495
Connector Kit	CONN-76267
Connector Pigtail	CONN-86267
Mating Parts Kit
Mating Parts Kit	CONN-
Master Kit
Master Connector Kit	CONN-

Specifications

Parameter Value
Number of Ways 12
Gender Plug/Male
Terminal Size 1mm
Terminal Type Round
Min. Wire Gauge 20
Max. Wire Gauge 16

This product contains the following items:
