Sumitomo 2 way TS 090 II Receptacle Connector Pigtail for Reverse & BUL Switches (Toyota # 90980-11050)	Part # CONN-86245

Pricing
1 +	$7.99
5 +	$7.75
25 +	$7.49
50 +	$7.25
100 +	$6.99
Information
Bmotorsports Part #	CONN-86245
Availability	In Stock
Shipping Weight	0.005 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

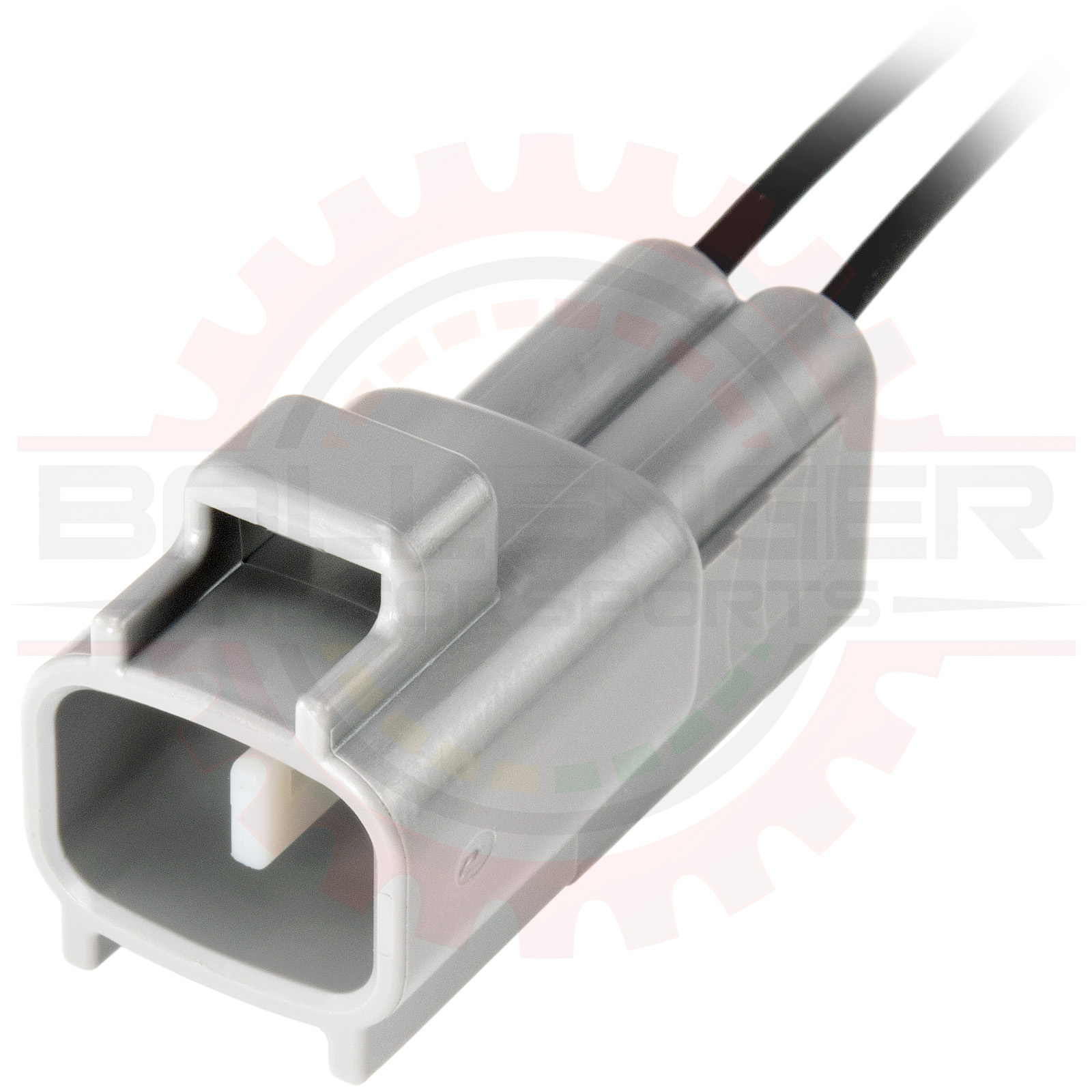

Sumitomo 2 way TS 090 II Receptacle Connector Pigtail for Reverse & BUL Switches (Toyota # 90980-11050). Completed pigtail with 12" of wire leads attached to crimp terminations populated in the connector housing, ready to splice-in
This connector receptacle is commonly found on Toyota and Lexus vehicles as Reverse switch connector for backup light trigger on Many Toyota C series transmissions, among many others.
Toyota # 90980-11050

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-100069	Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Only	CONN-101293	Sumitomo 2 way TS 090 II Receptacle Housing for Reverse & BUL Switches (Toyota # 90980-11050)
Connector Kit	CONN-76245	Sumitomo 2 way TS 090 II Receptacle Connector Kit for Reverse & BUL Switches (Toyota # 90980-11050)
Connector Pigtail	CONN-86245	Sumitomo 2 way TS 090 II Receptacle Connector Pigtail for Reverse & BUL Switches (Toyota # 90980-11050)
Mating Parts
Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Gold plated female terminals	CONN-100325	Sumitomo Part 6520-0349 For FRS GT86 or BRZ Tail Light, Toyota Oxygen Sensors
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Only	CONN-101172	2 Way Sumitomo Plug for reverse light switch/ BUL 90980-11051
Connector Kit	CONN-76268	2 Way Sumitomo Plug Kit for reverse light switch/ BUL 90980-11051
Connector Pigtail	CONN-86268	2 Way Sumitomo Plug Pigtail for reverse light switch/ BUL 90980-11051

Specifications

Parameter Value
Number of Ways 2
Gender Receptacle/Female
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

Applications:

Reverse switch connector for backup light trigger on Many Toyota C series transmissions
When the keyways are modified, can be used with turn signal/marker light bulbs and some washer pump connector mates

This product contains the following items:
	» 10 x Labor $0.25/minute Part # LABR-00001
	» 2 x 18AWG Automotive TXL Wire Black Part # WIRE-00459s
	» 2 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge ) Part # CONN-00145
	» 2 x Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge ) Part # CONN-100069
	» 1 x Sumitomo 2 way TS 090 II Receptacle Housing for Reverse & BUL Switches (Toyota # 90980-11050) Part # CONN-101293
