Modified Sumitomo 2 way TS 090 II Receptacle Connector Kit, Keyless	Part # CONN-76244

Pricing
1 +	$7.99
5 +	$7.75
25 +	$7.49
50 +	$7.25
100 +	$6.99
Information
Bmotorsports Part #	CONN-76244
Availability	In Stock
Shipping Weight	0.005 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

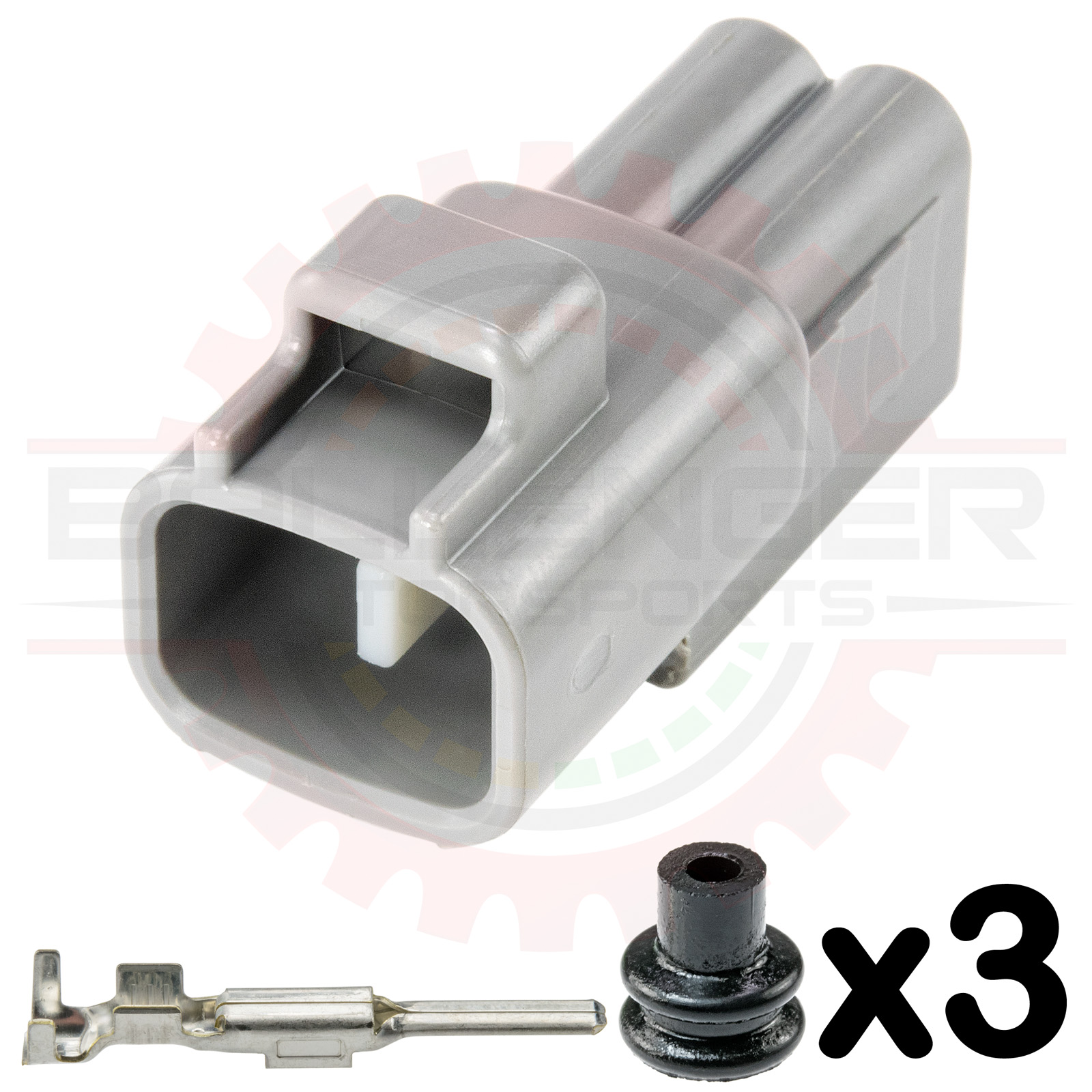

Modified Sumitomo 2 way TS 090 II Receptacle Connector Kit, Keyless. Connector Kit. Terminals and seals included.
This connector receptacle is commonly found on Toyota and Lexus vehicles. With the keyway removed, it is applicable for many devices and adapters that were previously unavailable, or of lower quality. Of note are turn signal, sidemarker light sockets, windshield washer fluid pumps, ignition noise filter, and many many more.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-100069	Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Only	CONN-101354	Modified Sumitomo 2 way TS 090 II Receptacle Housing, Keyless
Connector Kit	CONN-76244	Modified Sumitomo 2 way TS 090 II Receptacle Connector Kit, Keyless
Connector Pigtail	CONN-86244	Modified Sumitomo 2 way TS 090 II Receptacle Housing Connector Pigtail, Keyless
Mating Parts
Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )

Specifications

Parameter Value
Number of Ways 2
Gender Receptacle/Female
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

Applications:

Reverse switch connector for backup light trigger on Many Toyota C series transmissions
When the keyways are modified, can be used with turn signal/marker light bulbs and some washer pump connector mates

» 1 x Modified Sumitomo 2 way TS 090 II Receptacle Housing, Keyless
» Modified Sumitomo 2 way TS 090 II Receptacle Housing, Keyless
     2 x Labor $0.25/minute
     Labor $0.25/minute
     1 x Sumitomo 2 way TS 090 II Receptacle Housing for Reverse & BUL Switches (Toyota # 90980-11050)
     Sumitomo 2 way TS 090 II Receptacle Housing for Reverse & BUL Switches (Toyota # 90980-11050)

This product contains the following items:
	» 3 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge ) Part # CONN-00145
	» 3 x Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge ) Part # CONN-100069
