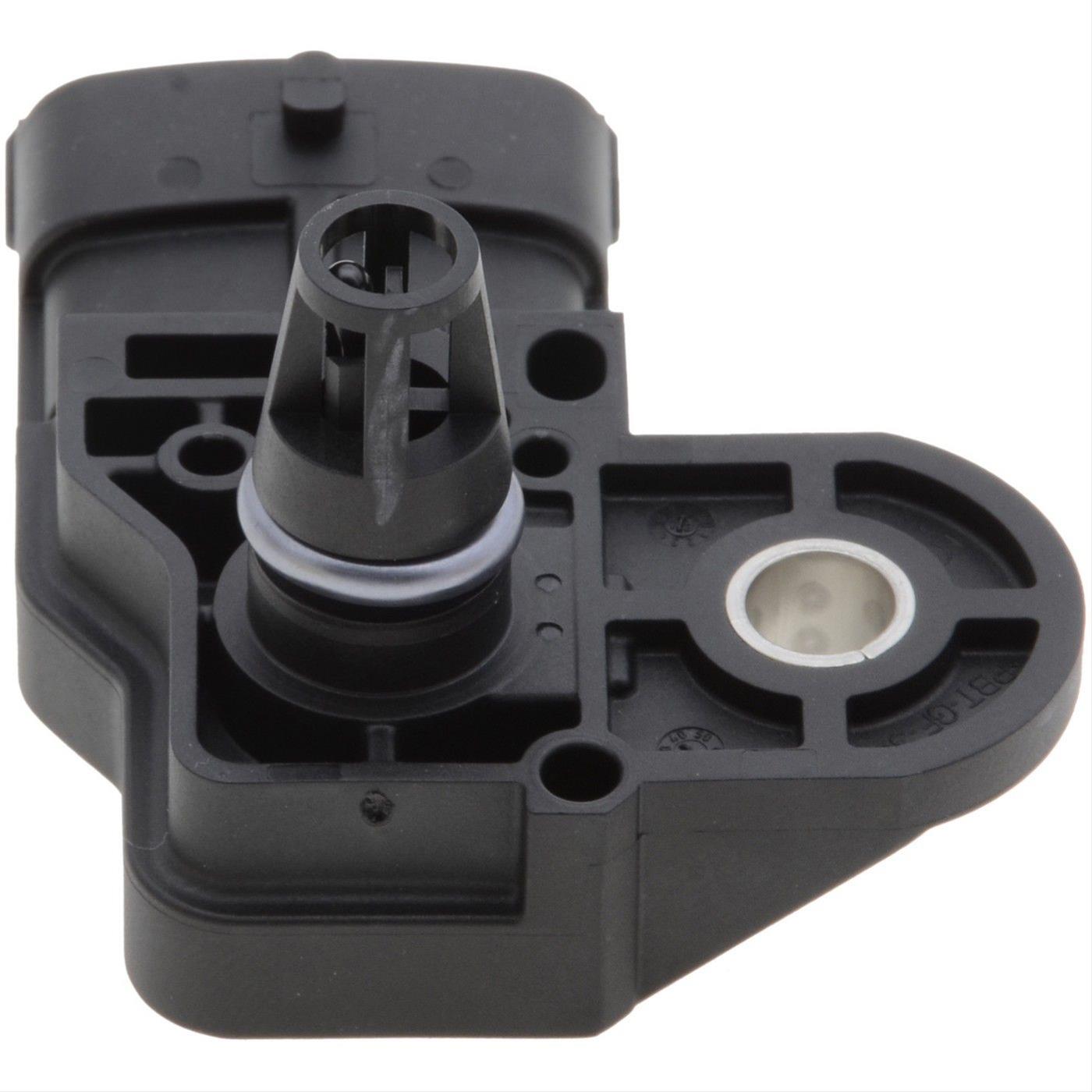

Bosch Pressure Sensor TMap Sensor Part # SNSR-03105
Bosch Pressure Sensor TMap Sensor Bosch Pressure Sensor TMap Sensor Bosch Pressure Sensor TMap Sensor
Pricing
1 + $47.99
15 + $37.92
Information
Bmotorsports Part # SNSR-03105
Availability In Stock
Shipping Weight 0.15 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

Used in Ford Ecoboost 1.0 / 2.3L engines in the Focus SE and Focus RS

This Genuine Bosch sensor is used in vehicles worldwide and regarded by many as the most accurate and precise volume production sensor, the Bosch TMap is an excellent sensor for forced induction applications such as turbocharged and supercharged vehicles. 3 bar Map sensors are not intended for naturally aspirated applications.

Used on Power Commander V - PTi for forced induction applications


Specifications

We are awaiting final specification data from Bosch on this particular item but information indicates the following calibration with linearity between points:

P1 -> 20 kPa at 0.25V
P2 -> 300 kPa at 4.75V


Associated & Mating Parts

Relationship Part # Description
Associated Parts
Bosch 1 Bar TMap MAP Sensor SNSR-03091Bosch 1 Bar TMap Map Sensor with IAT
Bosch 2.5 Bar TMap MAP Sensor SNSR-03083Bosch 2.5 Bar TMap Map Sensor with IAT
Bosch 3 Bar TMap MAP Sensor SNSR-03085Bosch 3 Bar TMap Map Sensor with IAT
Bosch 3.5 Bar TMap MAP Sensor SNSR-03088Bosch 3.5 Bar TMap Map Sensor with IAT
Bosch 4 Bar TMap MAP Sensor SNSR-03089Bosch 4 Bar TMap Map Sensor with IAT
Mating Parts
Connector only CONN-1002454-way sealed Plug Bosch BSK Connector for Bosch MAP Sensor (Connector ONLY!)
Connector kit CONN-757224-way sealed Plug Bosch BSK Connector Kit for Bosch MAP Sensor
Connector Pigtail CONN-857224-way sealed Plug Bosch BSK Connector Pigtail for Bosch MAP Sensor
Bosch TMap Extension CONN-858274 Way Sealed Receptacle Bosch BSK Connector Extension for Bosch MAP Sensor
Ford/Mazda TMAP to Bosch TMAP Adapter CONN-85824Ford / Mazda TMAP to Bosch TMAP Adapter

Images / Drawings

Bosch 3 Bar TMap Map Sensor with IAT Physical Dimensions

Some Ecotec applications may require the following modification:
Bosch 3 Bar TMap Map Sensor with IAT Ecotec Boss Removal
