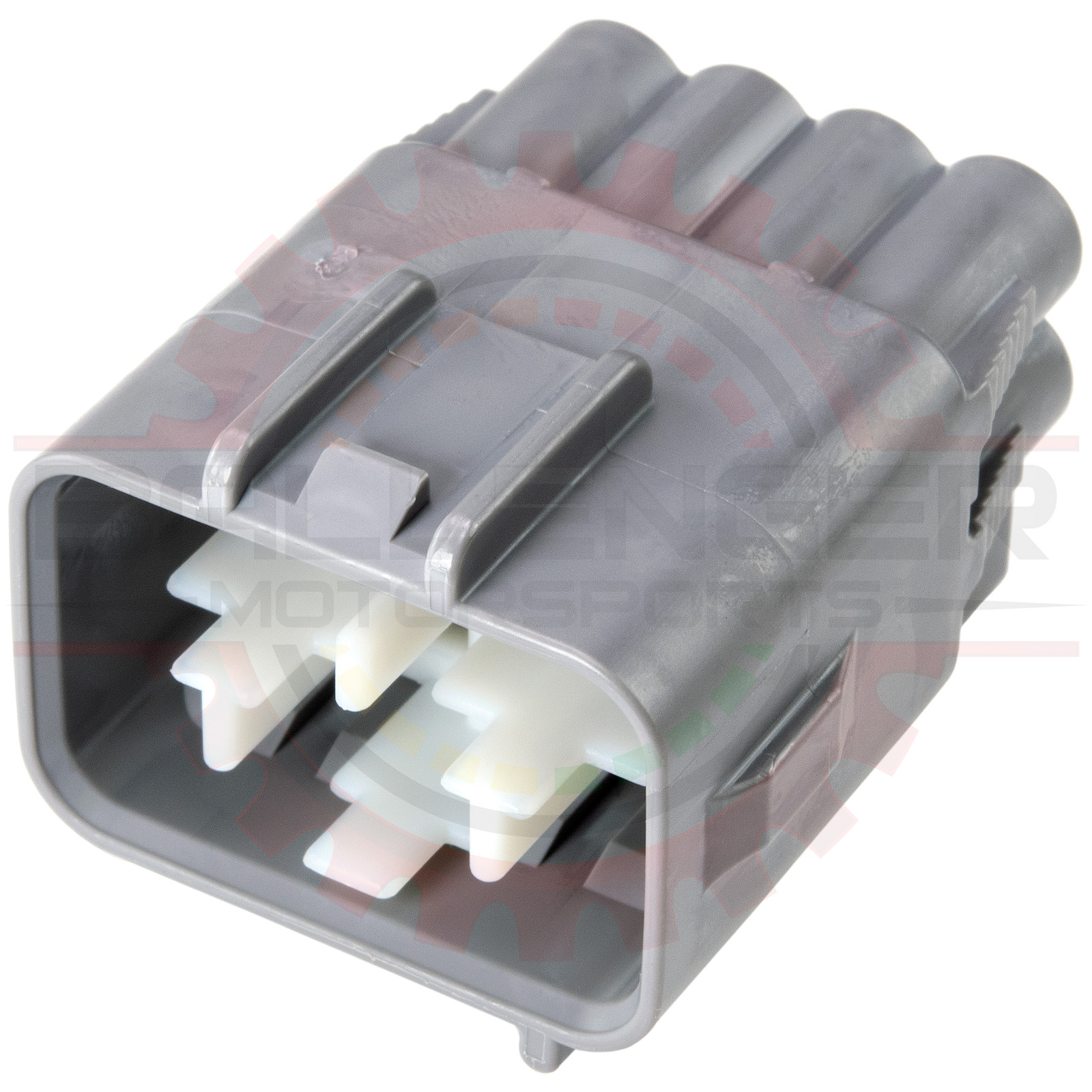

8 Way Japanese Connector Receptacle for Headlight Applications Toyota # 90980-10896	Part # CONN-101099

Pricing
1 +	$7.99
10 +	$7.74
25 +	$7.49
50 +	$6.99
Information
Bmotorsports Part #	CONN-101099
Availability	In Stock
Shipping Weight	0.15 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

8 Way Japanese Connector Receptacle for Headlight Applications Toyota # 90980-10896. Connector ONLY. Terminals and seals Not included.

Associated & Mating Parts

Relationship	Part #	Description
Mating Parts
20-16 AWG Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
22-20 AWG Terminals	CONN-11857	Yazaki Female Terminals for 2 way 090 IAT / MAT Connector ( 22 - 20 AWG )
22-18 AWG Seals	CONN-00146	Sumitomo HM / MT / TS Sealed Series wire seal, brown( 22 - 18 gauge )
20-16 AWG Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Cavity Plug	CONN-100550	Sumitomo MT / TS / HX / SL Sealed Series Cavity plug, black 7160-9465
Connector Housing	CONN-101017	8 Way Japanese Connector Plug for Headlight Applications Toyota # 90980-10897
8 way Connector Kit	CONN-76067	8 Way Japanese Connector Plug Kit for Headlight Applications Toyota # 90980-10897
8 way Connector Pigtail	CONN-86067	8 Way Japanese Connector Plug Pigtail for Headlight Applications Toyota # 90980-10897
Headlight Harness	CONN-86070	Tundra LED Retrofit Headlight harness
Associated Parts
20-16 AWG Terminals	CONN-100069	Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
22-20 AWG Terminals	CONN-100059	Yazaki TS090 II Male Terminal ( 22 - 20 AWG )
22-18 AWG Seals	CONN-00146	Sumitomo HM / MT / TS Sealed Series wire seal, brown( 22 - 18 gauge )
20-16 AWG Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Cavity Plug	CONN-100550	Sumitomo MT / TS / HX / SL Sealed Series Cavity plug, black 7160-9465
Connector Housing	CONN-101099	8 Way Japanese Connector Receptacle for Headlight Applications Toyota # 90980-10896
Receptacle Kit	CONN-76239	8 Way Japanese Connector Receptacle Kit for Headlight Applications Toyota # 90980-10896
Pigtail	CONN-86239

Applications

2018 Toyota Tundra LED Headlamp mate connector
connector for some Subaru light harnesses

Specifications

Parameter Value
Number of Ways 8
Gender Receptacle/Female
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 22
Max. Wire Gauge 16

Used In

Part #	Description
CONN-76239	8 Way Japanese Connector Receptacle Kit for Headlight Applications Toyota # 90980-10896
