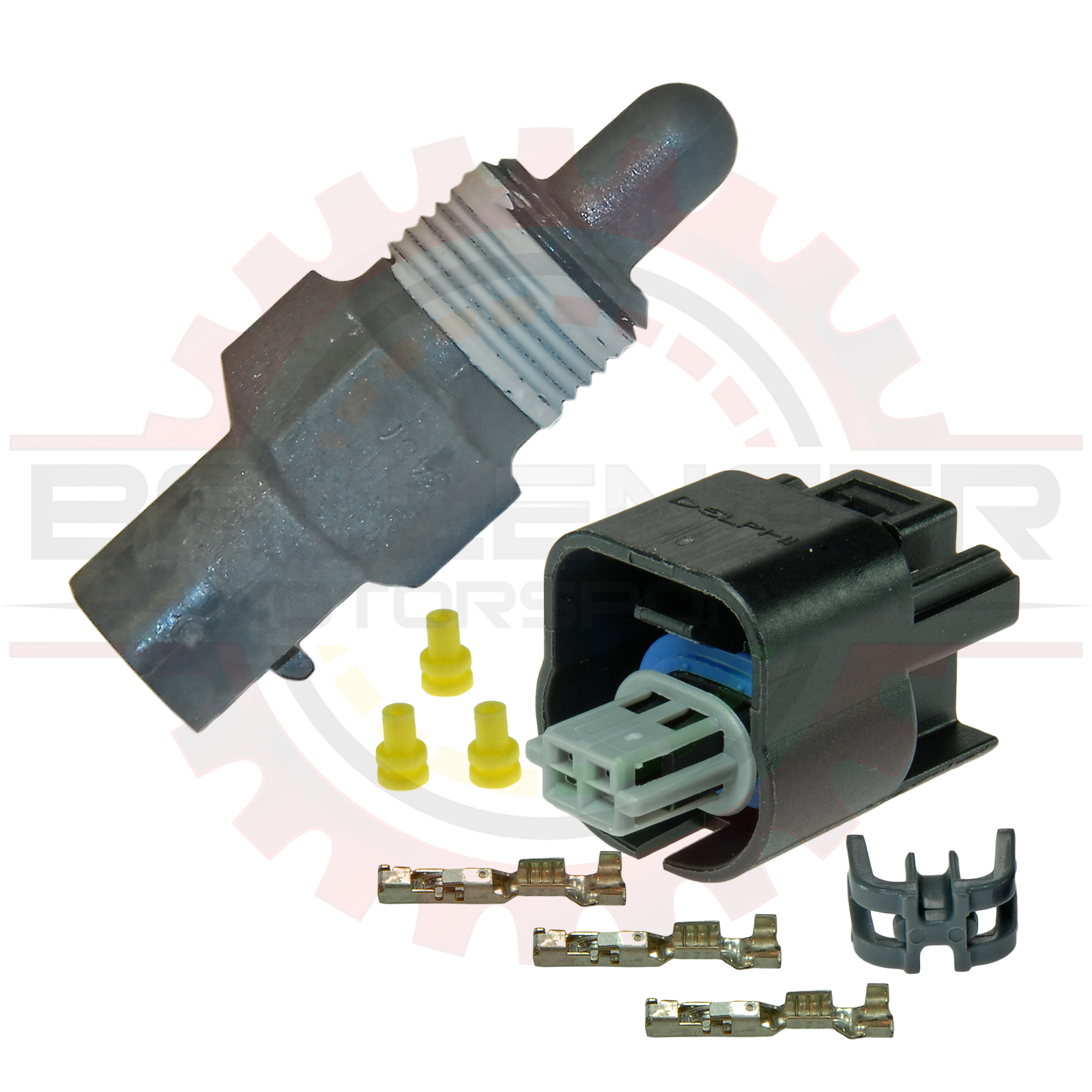

GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT) or Manifold Air Temperature Sensor # 12146830 , Gray with Keyway Connector Kit	Part # SNSR-02058CK

Pricing
1 +	$15.00
5 +	$14.49
10 +	$14.09
25 +	$13.99
50 +	$13.79
100 +	$13.69
250 +	$13.09
500 +	$12.99
1000 +	$9.99
2000 +	$8.99
Information
Bmotorsports Part #	SNSR-02058CK
Availability	Out Of Stock
Shipping Weight	0.035 Lbs.
Shipping Location	VA (Shipping Info)
Options
Mounting Option
	Quantity:

Description

GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT) or Manifold Air Temperature Sensor # 12146830 , Gray with Keyway Connector Kit

FEATURES:

Genuine Delphi Sensor
Robust Design
Cost Effective
100% Calibration Certified
Thermistor Technology
Typical Voltage Supply: 5V DC
Operating Temperature: -40 C to 135 C
Sensor Body Material: PEI 30% GF
Hex Size: 18.90 mm (3/4")
Thread Size: 3/8" - 18 NPTF
Thread Sealant: GM09985490
Sealing Pressure: 145 kPa
Thermal Time Constant: ** 60 sec
Dissipation Constant: * 18 mW/degC
Overall Wieght: 13.20 g
Color: Gray

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Fast Response 3/8 NPT IAT	SNSR-02057	Fast-Response GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT ) or Manifold Air Temperature Sensor # 25036751 - 25037225 - 25037034 RECOMMENDED
Fast Response M14x1.5 IAT	SNSR-02063	Fast-Response (Metric M14 x 1.5) GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT ) or Manifold Air Temperature Sensor
Fast Response Grommet IAT	SNSR-02060	GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT) or Manifold Air Temperature Sensor, Black with Keyway Connector
Standard Response Plastic IAT	SNSR-02058	GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT) or Manifold Air Temperature Sensor # 12146830 , Gray with Keyway Connector
Standard Response Plastic IAT (Mushroom Keyway)	SNSR-02055	GM Delphi / Packard Intake Air Temperature Sensor ( IAT / MAT / ACT) or Manifold Air Temperature Sensor # 12110446 , Black with Mushroom Connector
Preferred Mating Connector (Shrouded with rear release):
Connector Only	CONN-51560	GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female assembly for IAT
Terminals	CONN-56468	GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
Seals	CONN-56559	GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
Connector Kit	CONN-75643	GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female Kit for IAT
Connector Pigtail	CONN-85643	GM Delphi / Packard - 2-way Shrouded GT 150 3.5mm centerline sealed female Pigtail for IAT
Non-preferred Mating Connector (Unshrouded with front release):
Connector Only	CONN-51561	GM Delphi / Packard - 2-way un-shrouded GT 150 3.5mm centerline sealed female assembly for IAT
Terminals	CONN-56468	GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
Seals	CONN-56559	GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
Connector Kit	CONN-75644	GM Delphi / Packard - 2-way Un-shrouded GT 150 3.5mm centerline sealed female Kit for IAT
Connector Pigtail	CONN-85644	GM Delphi / Packard - 2-way un-shrouded GT 150 3.5mm centerline sealed female Pigtail for IAT
Extensions
IAT / MAT / ACT Wiring Extension	CONN-85584	GM Delphi / Packard - IAT / MAT / ACT Extender Harness
