4 Way Hybrid Connector Pigtail for LT2 AUX Cooling fan, GM# 19368655, Position 3 blocked	Part # CONN-86307

Pricing
1 +	$18.99
Information
Bmotorsports Part #	CONN-86307
Availability	In Stock
Shipping Weight	0.1 Lbs.
Shipping Location	VA (Shipping Info)
Options
Wire Size
	Quantity:

Description

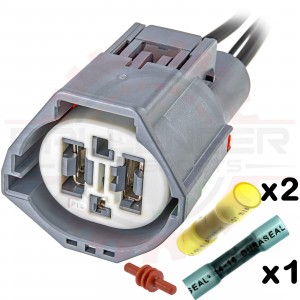

4 Way Hybrid Connector Pigtail for LT2 AUX Cooling fan, GM# 19368655, Position 3 blocked. Connector Pigtail. A completed pigtail is provided with about 10" of free wire leads (the connector itself is very long). Two 10AWG wires for high current and 1x 16AWG for the fan signal.

Used to connect to the 2020-2021 Chevrolet Corvette Auxiliary Cooling Fan motors 1 & 2 on LT2 engines, among many other GM applications

Wire Size options are for the two larger positions. You can select either 12AWG or 10AWG wire.

Associated & Mating Parts

Relationship	Part #	Description
Associated 9.5mm Parts
3 position, 1 blocked Connector Only	CONN-101481	4 Way Hybrid 375+060 Yazaki Connector for LT2 AUX Cooling fan, GM# 19368655, Position 3 blocked
12-10 AWG Female 9.5 Terminals	CONN-101483	Female 9.5mm Terminal for 10-12AWG
8 AWG Female 9.5 Terminals	CONN-101482	Yazaki 375 Female Terminal, Tin plated for 5-8mm², 10-8AWG
Cable seal, 10 AWG	CONN-101484	Yazaki 375 Cable seal, white for 8-10AWG
Cable seal, 12-10 AWG	CONN-101485	Yazaki 375 Cable seal, red for 12-10AWG
3 position, 1 blocked Connector Kit	CONN-76307	4 Way Hybrid 375+060 Yazaki Connector Kit for LT2 AUX Cooling fan, GM# 19368655, Position 3 blocked
3 position, 1 blocked Connector Pigtail	CONN-86307	4 Way Hybrid Connector Pigtail for LT2 AUX Cooling fan, GM# 19368655, Position 3 blocked
Associated 1.5mm Parts
20-16AWG Female Terminals	CONN-100481	Ford / Yazaki 1.5 Terminal, 18-16AWG
20-16AWG Wire Seals	CONN-56057	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
20-16AWG Male Terminals	CONN-100986	Ford / Yazaki 1.5 Male Terminal, 18-16AWG
14-16AWG Wire Seals	CONN-56058	GM Delphi / Packard - Metripack 150 2.85-2.03mm Cable Seal, Dark Red - 18-14 AWG
Cavity Plug	CONN-56059	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cavity Plug

Applications

Applications:

GM# 19368655
2020-2021 Chevrolet Corvette Auxiliary Cooling Fan
Many applications not listed

This product contains the following items:
	» 2 x 12 - 10 gauge heatshrink butt connector Part # CONN-66655
	» 1 x 16 - 14 gauge heatshrink butt connector Part # CONN-66656
	» 1 x 16AWG Automotive TXL Wire Black Part # WIRE-00460s
	» 1 x GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white Part # CONN-56057
	» 2 x 12AWG Automotive TXL Wire Black Part # WIRE-00462s
	» 1 x Ford / Yazaki 1.5 Terminal, 18-16AWG Part # CONN-100481
	» 1 x 4 Way Hybrid 375+060 Yazaki Connector for LT2 AUX Cooling fan, GM# 19368655, Position 3 blocked Part # CONN-101481
	» 2 x Yazaki 375 Cable seal, red for 12-10AWG Part # CONN-101485
	» 2 x Yazaki 375 Female Terminal, Tin plated for 3mm², 12AWG Part # CONN-101483
