1/8 NPT DTM Air Temperature Sensor Kit( AIT / MAT / ACT)	Part # SNSR-02100CK

Pricing
1 +	$43.79
10 +	$42.99
50 +	$41.99
100 +	$37.99
400 +	$35.99
Information
Bmotorsports Part #	SNSR-02100CK
Availability	In Stock
Shipping Weight	0.09 Lbs.
Shipping Location	VA (Shipping Info)
Options
Mounting Option
	Quantity:

Description

Ballenger Motorsports now offers this popular air/manifold intake temperature sensor with the DTM connection system now molded straight to the sensor! no stub harness! This listing version comes with a mating connector kit.

FEATURES:

DTM Fluid Sensor
Robust Design
Cost Effective
Thermistor Technology

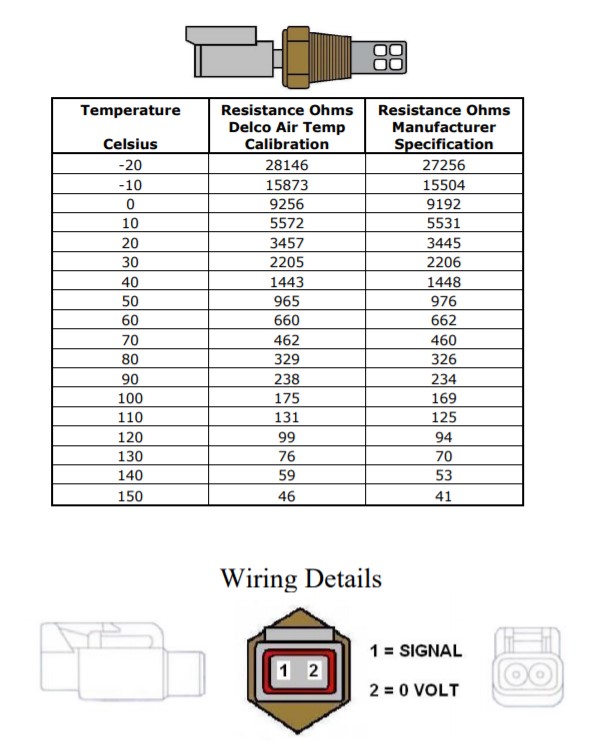

Typical Voltage Supply: 5V DC
Operating Temperature (Tip): -40 C to 140 C
Operating Temperature (Connector): -40 C to 150 C
Sensor Body Material: Brass
Overall Weight: 29.2g
Hex Size: (1/2")
Thread Size: 1/8 NPT

Cross References:

Most aftermarket ECU's on the market such as Haltech, Electromotive, Autronic, Bigstuff3, etc.
VERY common sensor with hundreds of other applications

Associated & Mating Parts

Relationship	Part #	Description
Mating Parts
Connector Only	CONN-100093	Deutsch DTM 2 way plug assembly, gray
Terminals	CONN-100090	Deutsch DTM Size 20 Solid Socket Female Nickel Plated Terminal, 0.5mm2 (20AWG)
Connector Kit	CONN-76181	Deutsch DTM/ATM 2 Way Connector Plug Kit
Pigtail	CONN-86181	Deutsch DTM/ATM 2 Way Connector Plug Pigtail
Associated Parts
Connector Only	CONN-100096	Deutsch DTM 2 way receptacle assembly, gray
Terminals	CONN-100089	Deutsch DTM Size 20 Solid Socket Male Nickel Plated Terminal, 0.5mm2 (20AWG)
Connector Kit	CONN-76182	Deutsch DTM/ATM 2 Way Connector Receptacle Kit
Pigtail	CONN-86182	Deutsch DTM/ATM 2 Way Connector Receptacle Pigtail

Specifications

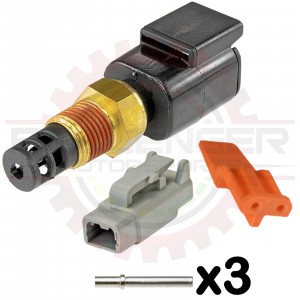

This product contains the following items:
	» 3 x Deutsch DTM Size 20 Solid Socket Female Nickel Plated Terminal, 0.5mm2 (20AWG) Part # CONN-100090
	» 1 x Deutsch DTM 2 way plug, gray Part # CONN-100091
	» 1 x Wedgelock for Deutsch DTM 2 way plug Part # CONN-100092
	» 1 x 1/8 NPT DTM Air Temperature Sensor ( AIT / MAT / ACT) Part # SNSR-02100
