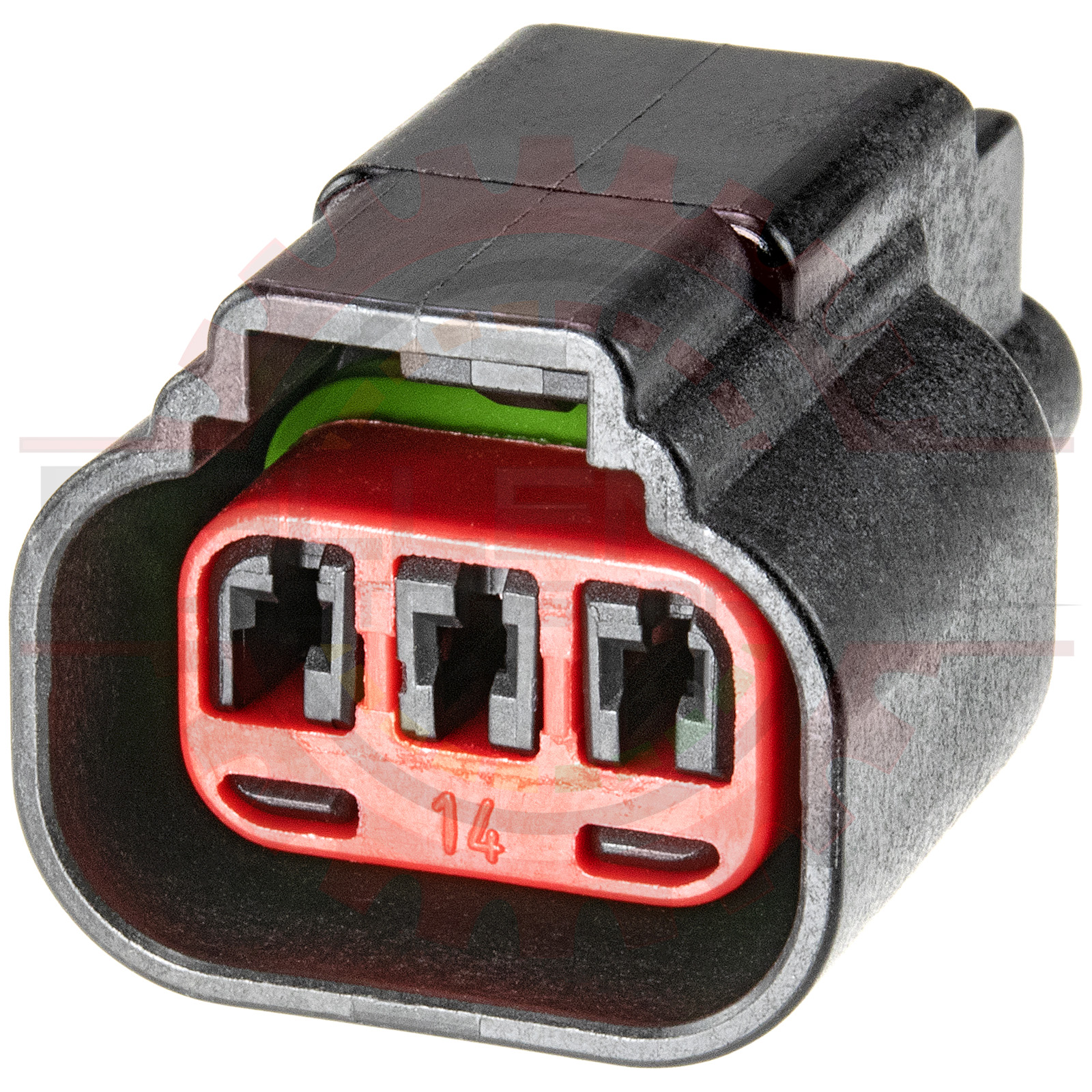

3 Way Connector Plug for NC Miata, Mazda, Ford Crank & CAM Sensors, Ignition Coils	Part # CONN-101489

Pricing
1 +	$6.99
25 +	$6.49
50 +	$6.25
100 +	$6.09
Information
Bmotorsports Part #	CONN-101489
Availability	In Stock
Shipping Weight	0.005 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

3 Way Connector Plug For NC Miata, Mazda, Ford Crank & CAM Sensors, Ignition Coils. Connector ONLY. Terminals and seals are not included.

This connector also fits very many devices on a variety of Ford, Lincoln, Mercury, and Mazda vehicles, including but not limited to: Crank Sensors, CAM Sensors, Ignition Coils, Fuel Tank Pressure Sensor, Turbine Speed Connector

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-100481	Ford / Yazaki 1.5 Terminal, 18-16AWG
Seals	CONN-56057	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Connector Only	CONN-101489	3 Way Connector Plug for NC Miata, Mazda, Ford Crank & CAM Sensors, Ignition Coils
Connector Kit	CONN-76306	3 Way Connector Plug Kit for NC Miata, Mazda, Ford Crank & CAM Sensors, Ignition Coils
Connector Pigtail	CONN-86306	3 Way Connector Plug Pigtail for NC Miata, Mazda, Ford Crank & CAM Sensors, Ignition Coils
Mating Parts
Terminals	CONN-100986	Ford / Yazaki 1.5 Male Terminal, 18-16AWG
Seals	CONN-56057	GM Delphi / Packard - Metri-Pack 150 (Metripack) Cable Seal ( 20 - 16 gauge ), white
Connector Only
Connector Kit
Connector Pigtail

Applications

NC Miata CAM Sensor Connector
NC Miata Crank Sensor Connector
Mazda 2.3L Crank Sensor Connector
2006 – 2013 Mazda3 models with 2.0 / 2.3 / 2.5L Engines
2008 – 2014 Mazda5 models with 2.3 / 2.5L Engines
2006 – 2014 Mazda6 models with 2.3 / 2.5L Engines
2007 – 2012 Mazda CX-7 models with 2.3 / 2.5L Engines
2006 – 2015 Mazda MX-5 NC with 2.0L Engines
Many applications not listed here

Specifications

Parameter Value
Number of Ways 3
Gender Plug/Male
Terminal Size 1.5mm
Terminal Type Flat
Min. Wire Gauge 18
Max. Wire Gauge 16

Used In

Part #	Description
CONN-76306	3 Way Connector Plug Kit for NC Miata, Mazda, Ford Crank & CAM Sensors, Ignition Coils
CONN-86306	3 Way Connector Plug Pigtail for NC Miata, Mazda, Ford Crank & CAM Sensors, Ignition Coils
