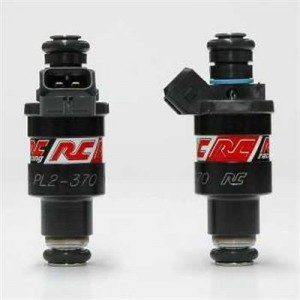

RC Engineering 370cc / min Bosch Style Peak & Hold Injector for 1989 Lotus Esprit Turbo

These are replacements for the primary 4 injectors for the SE (intercooled) or the non SE version of the 1989 Espirt Turbo. The SE version also has secondary injectors, which are of a different type and flow rate.
Connector: EV1

Flow Rate - CC's:
370 CC's / MIN @ 43.5 PSI

Flow Rate - LB's:
35 LBS / HR @ 43.5 PSI

Resistance:
2.5 Ohms @ 68° F

Voltage:
8-15 Volts, nominal 13.5 Volts

Amperage:
Peak 4.0 Amps / Hold 1.5 Amps

Pressure:
Min 30 PSIG / Max 100 PSIG

Mating Parts

Mating Connector:

• CONN-10659 - GM Delphi / Packard - Bosch EV1 Type Injector Connector ( connector only ) Push to seat

• CONN-10655 - GM Delphi / Packard - Bosch EV1 Type Injector Connector ( connector only )

Mating Connector Kit:

• CONN-75660 - GM Delphi / Packard - Bosch EV1 Type Injector Connector Kit Push to seat

• CONN-75557 - GM Delphi / Packard - Bosch EV1 Type Injector Connector Kit

Mating Connector Pigtail:

• CONN-85660 - GM Delphi / Packard - Bosch EV1 Type Injector Connector Pigtail Push to seat

• CONN-85557 - GM Delphi / Packard - Bosch EV1 Type Injector Connector Pigtail
