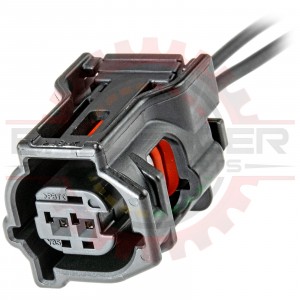

2 Way TS 025 Plug Connector Pigtail for ABS Applications 90980-12416 Part # CONN-86163
2 Way TS 025 Plug Connector Pigtail for ABS Applications 90980-12416 2 Way TS 025 Plug Connector Pigtail for ABS Applications 90980-12416 2 Way TS 025 Plug Connector Pigtail for ABS Applications 90980-12416
Pricing
1 + $9.69
20 + $8.99
50 + Call for Pricing
Information
Bmotorsports Part # CONN-86163
Availability In Stock
Shipping Weight 0.02 Lbs.
Shipping Location VA   (Shipping Info)
Ship Estimator Quantity:

Description

2 Way TS 025 Plug Connector Pigtail for ABS Applications 90980-12416. A completed pigtail is provided.


Associated & Mating Parts

Relationship Part # Description
Associated Parts
Terminals CONN-100514Sumitomo TS 025 Female Terminal 0.22 - 0.5mm2 (24 - 20AWG)
Seals CONN-100515Sumitomo TS 025 Seal 1.6 - 1.7mm
Connector Housing Only CONN-1012142 Way TS 025 Connector Plug Housing for ABS Applications
Connector Kit CONN-761632 Way TS 025 Plug Connector Kit for ABS Applications
Connector Pigtail CONN-861632 Way TS 025 Plug Connector Pigtail for ABS Applications 90980-12416
Mating Parts
Terminals CONN-100954Sumitomo TS 025 Male Terminal 0.22 - 0.5mm2 (24 - 20AWG)
Seals CONN-100515Sumitomo TS 025 Seal 1.6 - 1.7mm
Connector Housing Only CONN-1012152 Way TS 025 Receptacle Connector for ABS Applications 90980-12627
Connector Kit CONN-761642 Way TS 025 Receptacle Connector Kit for ABS Applications 90980-12627
Connector Pigtail CONN-861642 Way TS 025 Receptacle Connector Pigtail for ABS Applications 90980-12627
Extension
Extension CONN-

Applications

    Fits many Toyota, Scion & Lexus small Denso sensors, many applications


Specifications

Parameter Value
Number of Ways2
GenderPlug/Male
Terminal Size0.63mm
Terminal TypeFlat
Min. Wire Gauge24
Max. Wire Gauge20

This product contains the following items:
20AWG Automotive TXL Wire Black» 2 x 20AWG Automotive TXL Wire Black
Part # WIRE-00458S
Labor $0.25/minute» 2 x Labor $0.25/minute
Part # LABR-00001
Sumitomo TS 025 Female Terminal 0.22 - 0.5mm2 (24 - 20AWG)» 2 x Sumitomo TS 025 Female Terminal 0.22 - 0.5mm2 (24 - 20AWG)
Part # CONN-100514
Sumitomo TS 025 Seal 1.6 - 1.7mm» 2 x Sumitomo TS 025 Seal 1.6 - 1.7mm
Part # CONN-100515
2 Way TS 025 Connector Plug Housing for ABS Applications» 1 x 2 Way TS 025 Connector Plug Housing for ABS Applications
Part # CONN-101214
