4 Way TS 025 Plug Housing Connector Pigtail for Toyota TMAP Sensors	Part # CONN-86277

Pricing
1 +	$9.99
50 +	$9.49
100 +	Call for Pricing
Information
Bmotorsports Part #	CONN-86277
Availability	In Stock
Shipping Weight	0.002 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

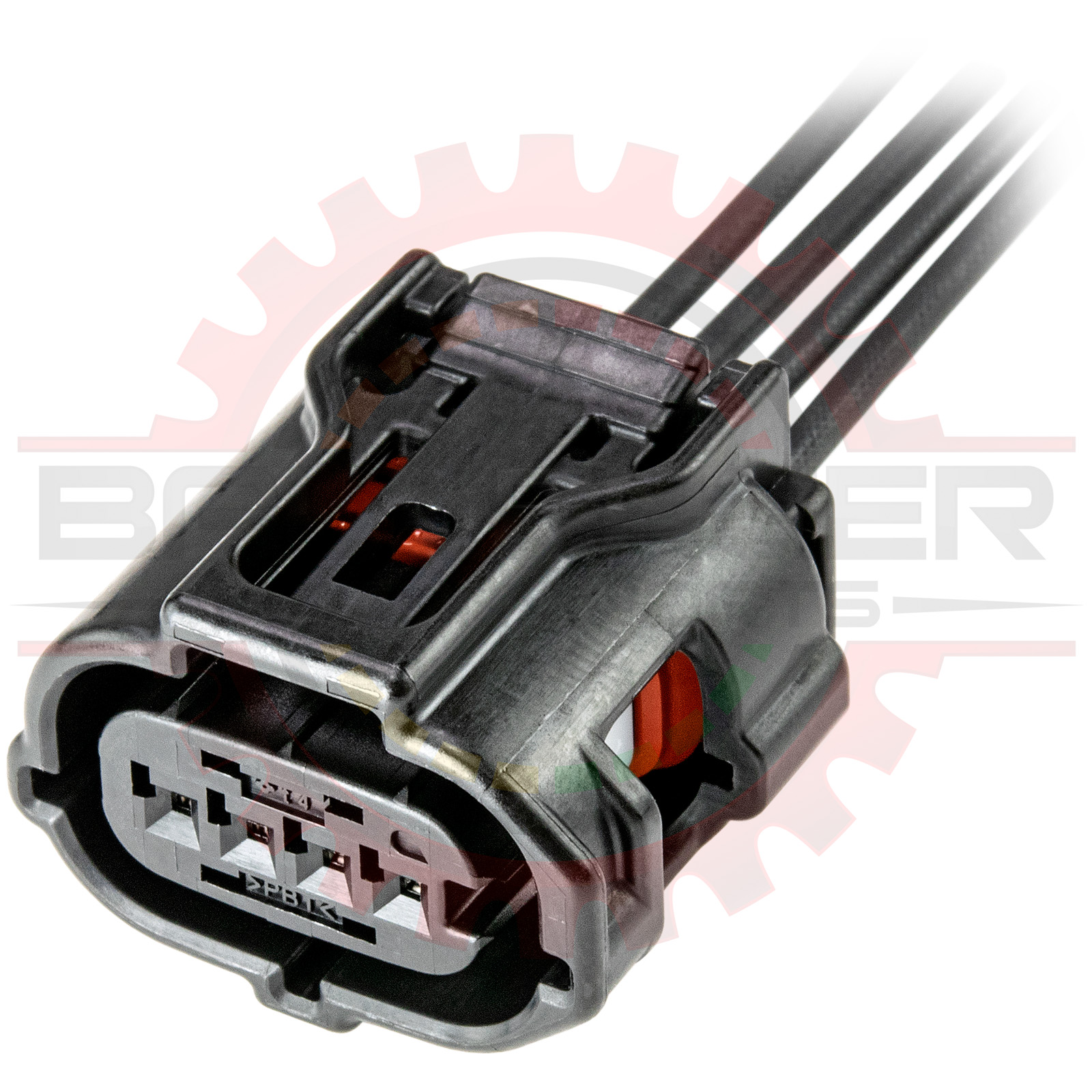

4 Way TS 025 Plug Housing Connector Pigtail for Toyota TMAP Sensors. A completed pigtail is provided with ~12 inches of free wire leads.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-100514	Sumitomo TS 025 Female Terminal 0.22 - 0.5mm2 (24 - 20AWG)
Seals	CONN-100515	Sumitomo TS 025 Seal 1.6 - 1.7mm
Connector Housing Only	CONN-101372	4 Way TS 025 Connector Plug Housing for Toyota TMAP Sensors
Connector Kit	CONN-76277	4 Way TS 025 Plug Housing Connector Kit for Toyota TMAP Sensors
Connector Pigtail	CONN-86277	4 Way TS 025 Plug Housing Connector Pigtail for Toyota TMAP Sensors
Mating Parts
Terminals	CONN-100954	Sumitomo TS 025 Male Terminal 0.22 - 0.5mm2 (24 - 20AWG)
Seals	CONN-100515	Sumitomo TS 025 Seal 1.6 - 1.7mm
Connector Housing Only	CONN-101373	4 Way TS 025 Receptacle Housing Connector for Toyota TMAP Sensors
Connector Kit	CONN-76278	4 Way TS 025 Receptacle Housing Connector Kit for Toyota TMAP Sensors
Connector Pigtail	CONN-86278	4 Way TS 025 Receptacle Housing Connector Pigtail for Toyota TMAP Sensors
Extension
Extension	CONN-

Applications

Fits many Toyota, Scion & Lexus Denso TMAP sensors, many applications including newer Hilux Diesel models.

Specifications

Parameter Value
Number of Ways 4
Gender Plug/Male
Terminal Size 0.63mm
Terminal Type Flat
Min. Wire Gauge 24
Max. Wire Gauge 20

This product contains the following items:
	» 4 x 20AWG Automotive TXL Wire Black Part # WIRE-00458S
	» 20 x Labor $0.25/minute Part # LABR-00001
	» 4 x Sumitomo TS 025 Female Terminal 0.22 - 0.5mm2 (24 - 20AWG) Part # CONN-100514
	» 4 x Sumitomo TS 025 Seal 1.6 - 1.7mm Part # CONN-100515
	» 1 x 4 Way TS 025 Connector Plug Housing for Toyota TMAP Sensors Part # CONN-101372
