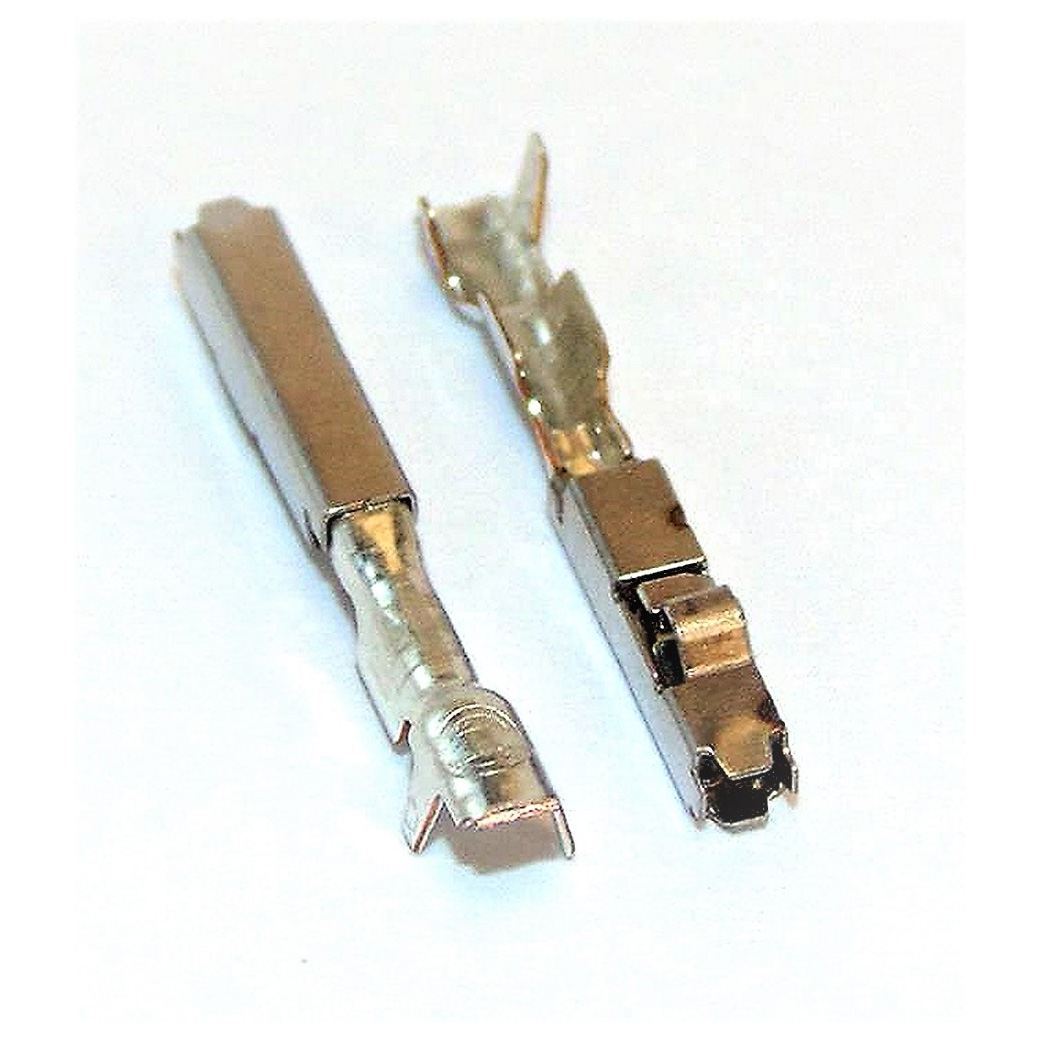

Bosch Matrix 1.2 CB Contact / Terminal, Tin Coated Part # CONN-100843
Bosch Matrix 1.2 CB Contact / Terminal, Tin Coated Bosch Matrix 1.2 CB Contact / Terminal, Tin Coated
Pricing
1 + $1.99
100 + $0.89
500 + $0.67
1000 + $0.61
2500 + $0.63
9000 + $0.33
Information
Bmotorsports Part # CONN-100843
Availability Special Order
Shipping Weight 0.002 Lbs.
Shipping Location VA   (Shipping Info)
Options
Wire Size
Ship Estimator Quantity:

Description

Bosch Matrix 1.2 CB Contact / Terminal, Tin Coated
Now offering this Bosch Matrix contact in the Clean Body connection lock style, please note the specific lock style differences on this terminal. This contact works for Bosch 196P ECU connectors, 91 and 105 position connectors# 1 928 405 452 and 1 928 405 455.

Choose your applicable wire size for this terminal in the drop down selection menu:

CONN-100844 1928498991 for 22-20AWG
CONN-100845 1928498992 for 0.75-1.0mm² (the dropdown says 0.8mm²)
CONN-100846 1928498993 for 1.5mm² (the dropdown says 1-2mm²)


Associated & Mating Parts

Relationship Part # Description
Associated Connectors
Tin Coated Bosch Matrix Terminals CONN-100278Bosch Matrix 1.2 LL Contact / Terminal 0.50 - .75 mm2 (20 - 18 AWG) Tin Coated
Silver Coated Bosch Matrix Terminals CONN-100289Bosch Matrix 1.2 LL Contact / Terminal 0.5 - 0.75mm2 (20 - 18 AWG) Silver Coated

Applications

Applications:

  • Some Bosch ECU Applications
  • fits in Bosch connector # 1928405455
  • fits in Bosch connector # 1928405452


Specifications

Parameter Value
GenderReceptacle/Female
Terminal Size0.5mm
Terminal Size (Secondary)0.75mm
Terminal TypeFlat
Min. Wire Gauge20
Max. Wire Gauge18
