MCON 1.2 to Bosch BDK TMAP Adapter Harness	Part # CONN-86331

Pricing
1 +	$39.99
Information
Bmotorsports Part #	CONN-86331
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

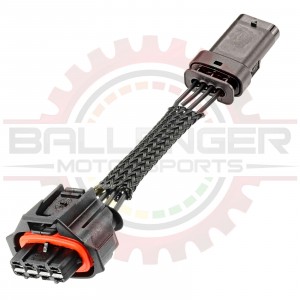

MCON 1.2 to Bosch BDK TMAP Adapter Harness

Finished connector adapter adapts a harness from a MCON 1.2 or MLK 1,2 sensor connection to common Bosch TMAP's uising the BDK/BSK connection system, to swap to 3 bar, 4 bar for a true plug and play install on any turbo or supercharger upgraded OEM system. For GM / Polaris.

Associated & Mating Parts

Relationship	Part #	Description
Mating Connectors
Connector Only	CONN-101067	4 Way MCP 1.2 Connector Plug for Coil Connections, Polaris RZR 1000 Turbo Tbap
Terminals	CONN-100713	Female Terminal for C7 Corvette oxygen sensor Connector Plug 20-18AWG (0.5 - 0.8mm2)
Seals	CONN-00193	Seals for Bosch wide flat connector for LSU 4.0 and LSU 4.9 sensor
Connector Kit	CONN-76108	4 Way MCP 1.2 Connector Kit for Coil Connections
Connector Pigtail	CONN-86108	4 Way MCP 1.2 Connector Pigtail for Coil Connections
Associated Connectors
Connector Only	CONN-100245	4-way sealed Plug Bosch BSK Connector for Bosch MAP Sensor (Connector ONLY!)
Terminals	CONN-11561	Bosch Female BDK Terminal for 0.5 - 1.0mm2 ( 20 - 16 gauge)
Seals	CONN-11562	Bosch BDK Seal for 0.5 - 1.0mm2 ( 20 - 16 gauge)
Connector Kit	CONN-75722	4-way sealed Plug Bosch BSK Connector Kit for Bosch MAP Sensor
Connector Pigtail	CONN-85722	4-way sealed Plug Bosch BSK Connector Pigtail for Bosch MAP Sensor
Mating Sensors
1 bar	SNSR-03091	Bosch 1 Bar TMap Map Sensor with IAT
2.5 bar	SNSR-03083	Bosch 2.5 Bar TMap Map Sensor with IAT
3 bar	SNSR-03088	Bosch 3.5 Bar TMap Map Sensor with IAT
4 bar	SNSR-03089	Bosch 4 Bar TMap Map Sensor with IAT

Applications

Applications:

Many other applications not listed

Specifications

Parameter Value
Terminal Size 0.5mm
Terminal Size (Secondary) 0.8mm
Terminal Size (Tertiary) 1mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 18

This product contains the following items:
	» 4 x Bosch Female BDK Terminal for 0.5 - 1.0mm2 ( 20 - 16 gauge) Part # CONN-11561
	» 4 x Bosch BDK Seal for 0.5 - 1.0mm2 ( 20 - 16 gauge) Part # CONN-11562
	» 4 x 18AWG Automotive TXL Wire Black Part # WIRE-00459s
	» 1 x 4-way sealed Plug Bosch BSK Connector for Bosch MAP Sensor (Connector ONLY!) Part # CONN-100245
	» 4 x Seals for Bosch wide flat connector for LSU 4.0 and LSU 4.9 sensor Part # CONN-00193
	» 4 x Male Terminal for C7 Corvette oxygen sensor Connector Receptacle 20-18AWG (0.5 - 0.8mm2) Part # CONN-100714
	» 1 x 4 Way Connector Receptacle for C7 Corvette oxygen sensor, Black Part # CONN-100776
	» 1 x 3/8in. Diameter Nylon Monofilament Expandable Braided Sleeving, Black Part # WIRE-57572
