ECM Lambda Pro Emissions Analyzer	Part # SNSR-01009

Pricing
1 +	$3,495.00
Information
Bmotorsports Part #	SNSR-01009
Availability	Special Order
Shipping Weight	0 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

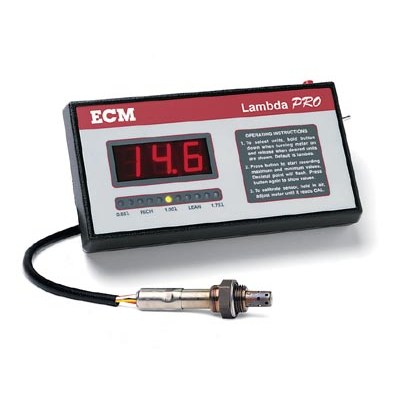

Lambda Pro

Lambda Pro is the simplest to use of all ECM’s air-fuel ratio (AFR) analyzers. But don’t let this fool you, Lambda Pro has “big meter” features such as a linearized analog output, max/min AFR recording, and a stoichiometric SEGO. Lambda Pro is DC powered and comes with a carrying case.

Specifications

General

Response Time	Less than 150ms
Fuel Type	Lambda, Gasoline, and Methanol
Power	11 to 28 VDC
Sensor Mounting	18mm x 1.5mm thread
Dimensions	7.5" x 4" x 1.2" (W x H x D)
Operating Temperature	Electronics: -40 to +85°C Sensor: 850°C (maximum continuous)

Ranges & Accuracies

λ	0.55 to 1.75 λ (+/-1% at stoichiometric, +/-2% elsewhere)
AFR	8.0 to 25.5 AFR (+/-1% at stoichiometric, +/-2% elsewhere)

Outputs

Analog

0 to 5 V, linearized.
SEGO (Simulated Exhaust Gas Oxygen) Sensor Output
