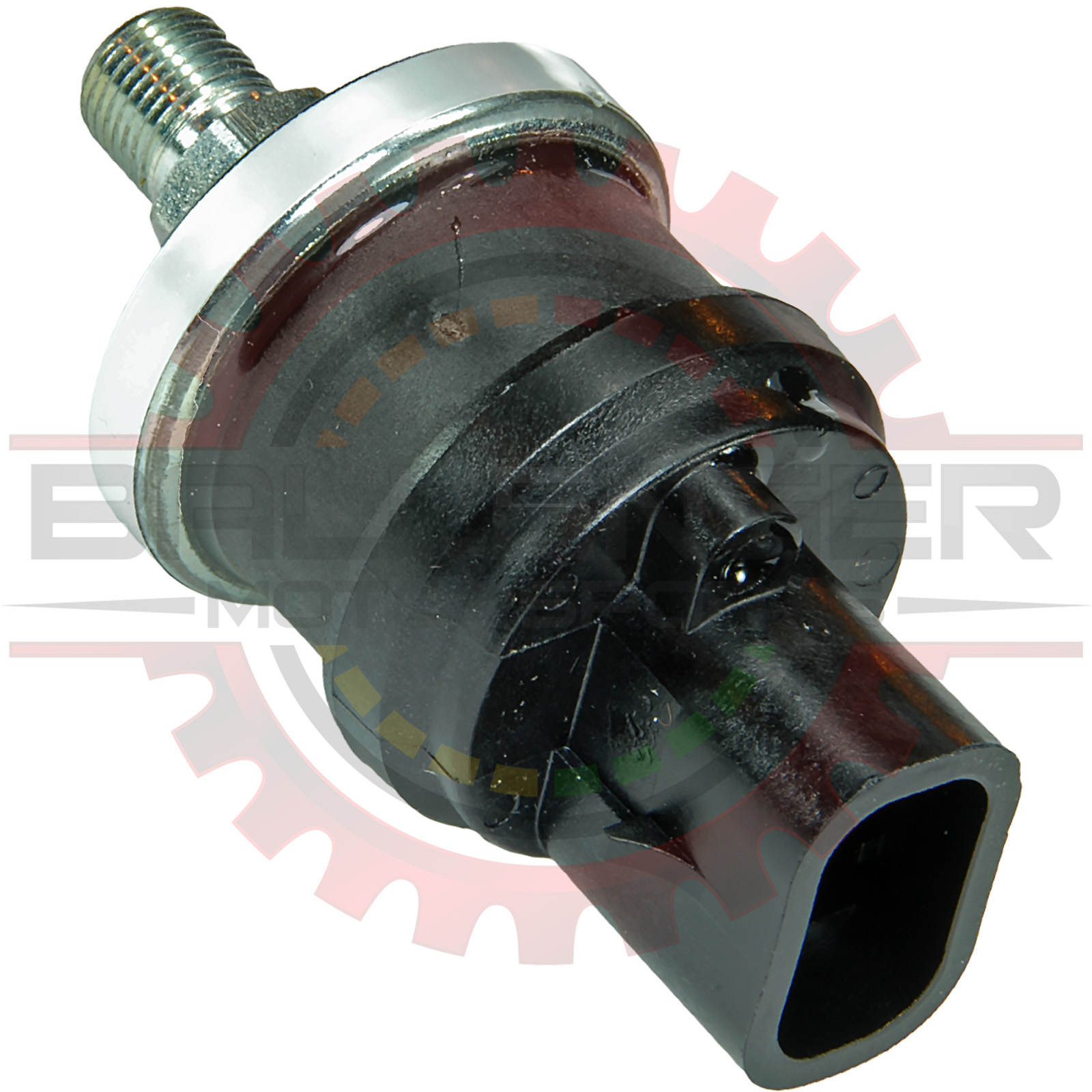

1-3 psi Honeywell Hobbs Switch with Weather Sealing, factory set at 2psi	Part # SNSR-03955

Pricing
1 +	$75.99
5 +	$75.49
10 +	$74.99
25 +	$74.49
50 +	$73.99
100 +	$72.99
Information
Bmotorsports Part #	SNSR-03955
Availability	In Stock
Shipping Weight	0.35 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

1-3 psi Honeywell Hobbs Switch with Weather Sealing, factory set at 2psi

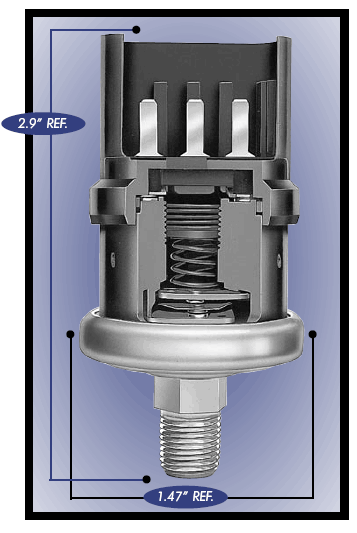

NOTE: This is the pressure switch only and does NOT come with the required mating connection! Please see the associated & mating parts tab for the mating connection and the kit version of this part. This is a two-pole switch (the below diagram is only for general illustrative purposes)

Circuit: SPST Normally Open, Adjustable pressure
Diaphragm: Polyimide film
Temperature Range: -40° F to + 250° F
Connector: 1/8 -27 NPT male thread
Base: Plated Steel
Cover: Glass reinforced polyester

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
2-3 PSI Switch only	SNSR-03955	1-3 psi Honeywell Hobbs Switch with Weather Sealing, factory set at 2psi
4-6 PSI Switch only	SNSR-03956	4-6 psi Honeywell Hobbs Switch with Weather Sealing, factory set at 5psi
4-6 PSI NC Switch only	SNSR-03973	4-6 psi Honeywell Hobbs Switch with Weather Sealing, factory set at 5psi, normally closed
2-3 PSI Switch Kit	SNSR-03964	1-3 psi Honeywell Hobbs Switch with Metripack Connector, factory set at 2psi, plus 2 way metripack 280 sealed connector Kit
4-6 PSI Switch Kit	SNSR-03964	1-3 psi Honeywell Hobbs Switch with Metripack Connector, factory set at 2psi, plus 2 way metripack 280 sealed connector Kit
Mating Connector
Connector Only	CONN-31568	GM Delphi / Packard - 2 way metripack 280 sealed connector assembly, black (connector and TPA)
Seals	CONN-55560	GM Delphi / Packard - Weather-Pack ( Weatherpack ) Cable Seal ( 20 - 16 gauge ) ( purple )
Terminals	CONN-55955	GM Delphi / Packard - Female Metripack 280 Terminal, 18-16 gauge
Connector Kit	CONN-75618	GM Delphi / Packard - 2 way metripack 280 sealed black connector Kit
Connector Pigtail	CONN-85618	GM Delphi / Packard - 2 way metripack 280 sealed black connector Pigtail

Used In

Part #	Description
SNSR-03964	1-3 psi Honeywell Hobbs Switch with Metripack Connector, factory set at 2psi, plus 2 way metripack 280 sealed connector Kit
