2 Way Sumitomo Plug Kit for reverse light switch/ BUL 90980-11051	Part # CONN-76268

Pricing
1 +	$8.99
Information
Bmotorsports Part #	CONN-76268
Availability	In Stock
Shipping Weight	0.03 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

Sumitomo 2 Way Sumitomo Plug Kit for reverse light switch/ BUL 90980-11051. Connector Kit. Terminals and seals included.
This connector is commonly found on Toyota and Lexus vehicles as Reverse switch connector for backup light trigger on Many Toyota C series transmissions, among many others.
Toyota # 90980-11051

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Gold plated female terminals	CONN-100325	Sumitomo Part 6520-0349 For FRS GT86 or BRZ Tail Light, Toyota Oxygen Sensors
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Only	CONN-101172	2 Way Sumitomo Plug for reverse light switch/ BUL 90980-11051
Connector Kit	CONN-76268	2 Way Sumitomo Plug Kit for reverse light switch/ BUL 90980-11051
Connector Pigtail	CONN-86268	2 Way Sumitomo Plug Pigtail for reverse light switch/ BUL 90980-11051
Mating Parts
Terminals	CONN-100069	Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Only	CONN-101293	Sumitomo 2 way TS 090 II Receptacle Housing for Reverse & BUL Switches (Toyota # 90980-11050)
Connector Kit	CONN-76245	Sumitomo 2 way TS 090 II Receptacle Connector Kit for Reverse & BUL Switches (Toyota # 90980-11050)
Connector Pigtail	CONN-86245	Sumitomo 2 way TS 090 II Receptacle Connector Pigtail for Reverse & BUL Switches (Toyota # 90980-11050)

Specifications

Parameter Value
Number of Ways 2
Gender Plug/Male
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

Applications:

Reverse switch connector for backup light trigger on Many Toyota C series transmissions
When the keyways are modified, can be used with turn signal/marker light bulbs and some washer pump connector mates

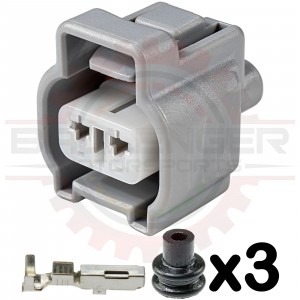

This product contains the following items:
	» 3 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge ) Part # CONN-00145
	» 3 x Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG ) Part # CONN-11856
	» 1 x 2 Way Sumitomo Plug for reverse light switch/ BUL 90980-11051 Part # CONN-101172
