Home » Shop » Connectors / Harnesses » Delphi / Packard » Connector Kits » 3 Way 150.2 & Gt 150 3.5mm centerline Receptacle Connector Kit

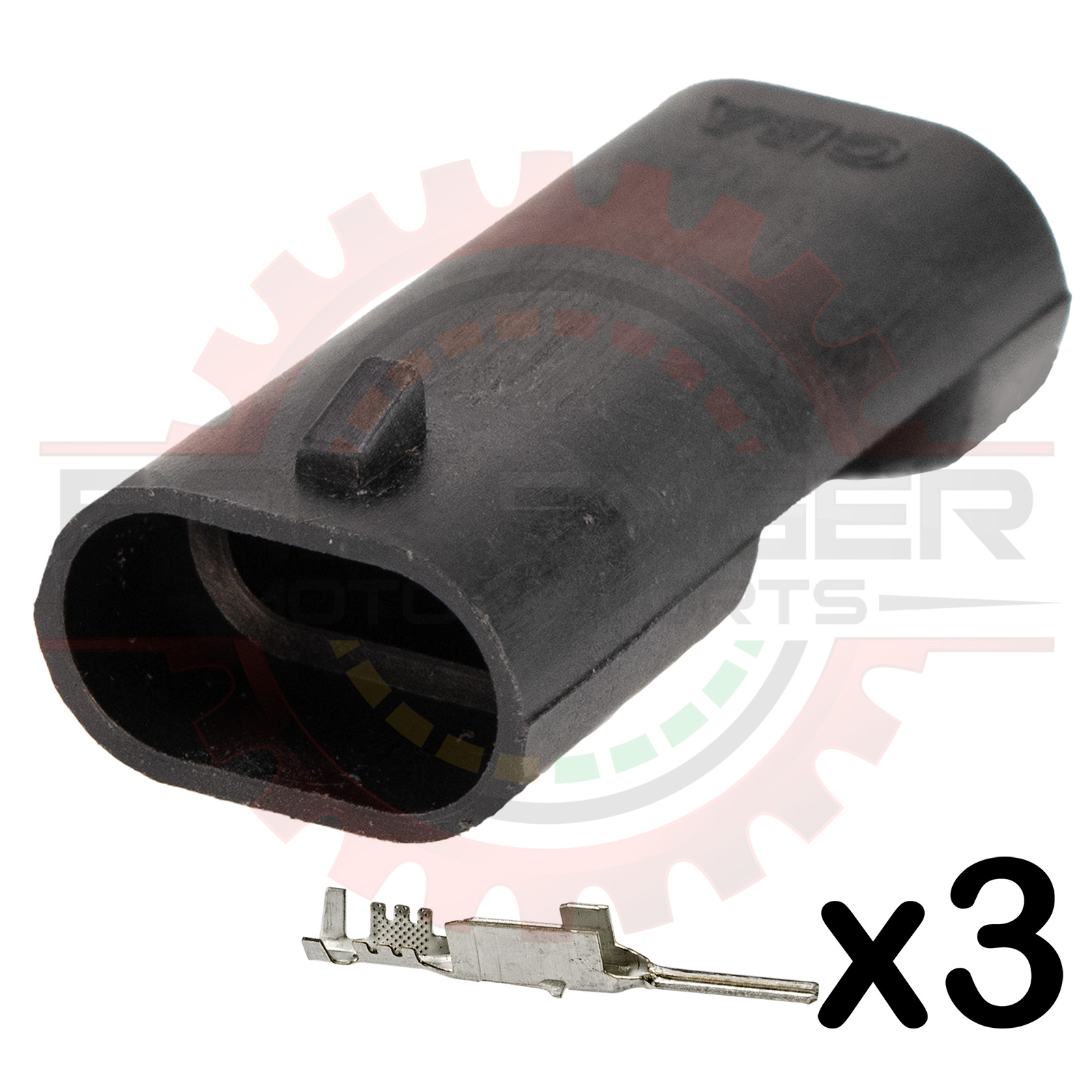

3 Way 150.2 & Gt 150 3.5mm centerline Receptacle Connector Kit	Part # CONN-75860

Pricing
1 +	$9.99
Information
Bmotorsports Part #	CONN-75860
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

3 Way 150.2 & Gt 150 3.5mm centerline Receptacle Connector Kit. Terminals are included.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-100730	Pull to seat Male Terminal for 150.2 & GT 150 3.5mm receptacles in 3,4,5,6 way
Connector Housing	CONN-100726	3 Way 150.2 & Gt 150 3.5mm centerline Receptacle Connector
Connector Kit	CONN-75860	3 Way 150.2 & Gt 150 3.5mm centerline Receptacle Connector Kit
Pigtail	CONN-85860	3 Way 150.2 & Gt 150 3.5mm centerline Receptacle Connector Pigtail
Mating Parts
Terminals	CONN-56468	GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
Seals	CONN-56559	GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
Connector Housing	CONN-100853	3 Way Crankshaft & Camshaft Position Sensor Connector Plug
Connector Kit	CONN-75946	3 Way Crankshaft & Camshaft Position Sensor Connector Plug Kit
Pigtail	CONN-85946	3 Way Crankshaft & Camshaft Position Sensor Connector Plug Pigtail
Connector Housing	CONN-52210	GM Delphi / Packard - 3 way GT 150 3.5mm Centerline Connector Plug for some Delphi TPS & Ignition Coils (mushroom keyway)
Connector Kit	CONN-75731	GM Delphi / Packard - 3 way GT 150 3.5mm Centerline Connector Plug Kit for some Delphi TPS & Ignition Coils (mushroom keyway)
Pigtail	CONN-85731	GM Delphi / Packard - 3 way GT 150 3.5mm Centerline Connector Plug Pigtail for some Delphi TPS & Ignition Coils (mushroom keyway)

Specifications

Parameter Value
Number of Ways 3
Gender Plug/Male
Terminal Size 1.5mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

This product contains the following items:
	» 4 x Pull to seat Male Terminal for 150.2 & GT 150 3.5mm receptacles in 3,4,5,6 way Part # CONN-100730
	» 1 x 3 Way 150.2 & Gt 150 3.5mm centerline Receptacle Connector Part # CONN-100726
