1 Way Sumitomo SL 090 2.3mm Pigtail for older model sensors	Part # CONN-85396

Pricing
1 +	$6.99
Information
Bmotorsports Part #	CONN-85396
Availability	In Stock
Shipping Weight	0.02 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

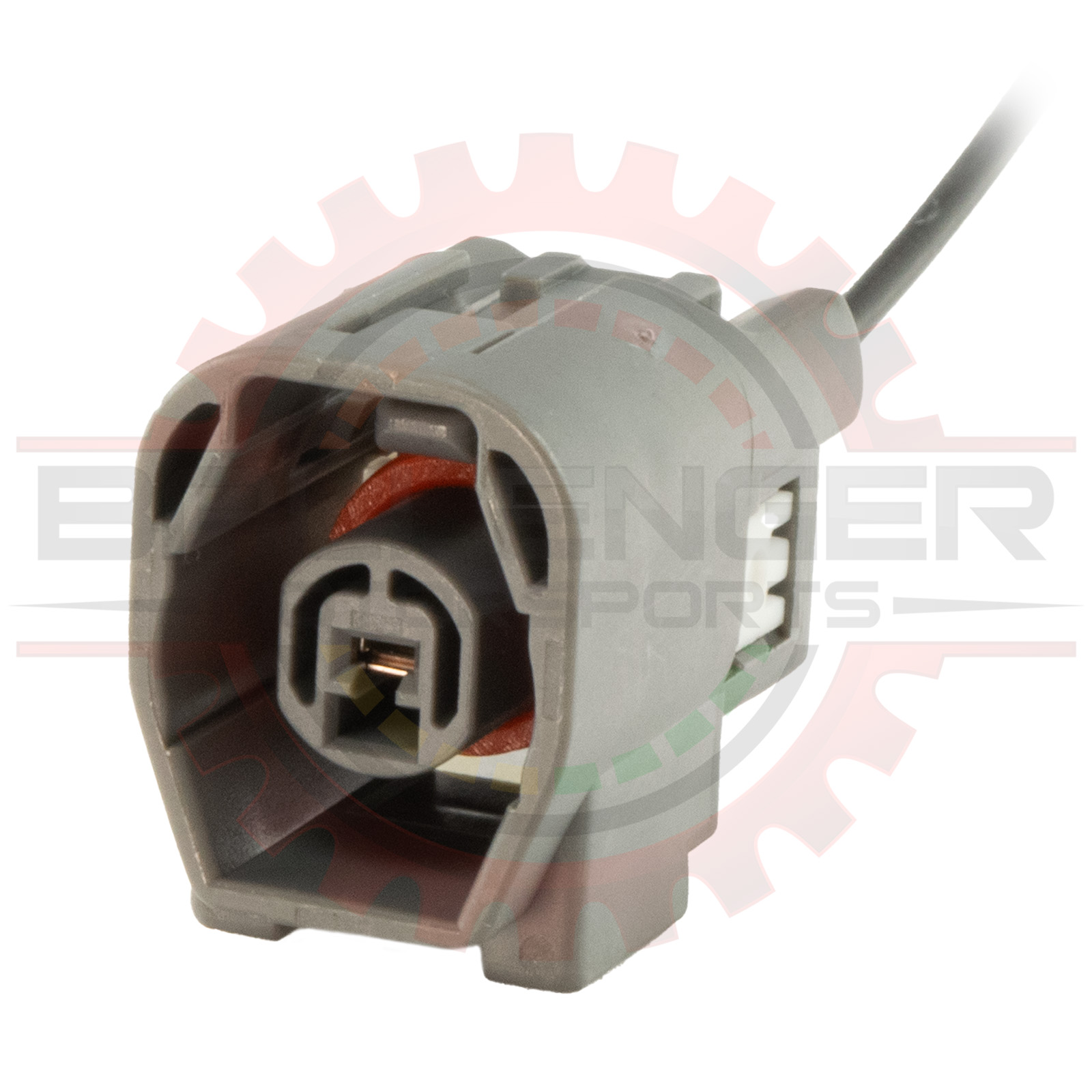

1 Way Sumitomo SL 090 2.3mm Connector Pigtail for older model sensors. Pigtail with populated 12" wire lead is provided.

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminal	CONN-100452	Sumitomo HX / DL / SL Sealed Series Female terminal 18 - 16 AWG Terminal, loose piece
Seal	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Housing Only	CONN-101539	1 Way Sumitomo SL 090 2.3mm Connector for older model sensors
Plug Kit	CONN-75396	1 Way Sumitomo SL 090 2.3mm Kit for older model sensors
Plug Pigtail	CONN-85396	1 Way Sumitomo SL 090 2.3mm Pigtail for older model sensors
Mating Parts
Terminal	CONN-100451	Sumitomo HX / DL / SL Sealed Series Male terminal 18 - 16 AWG Terminal, loose piece

Specifications

Parameter Value
Number of Ways 1
Gender Plug/Male
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 18
Max. Wire Gauge 16

This product contains the following items:
	» 1 x 18AWG Automotive TXL Wire Black Part # WIRE-00459s
	» 1 x Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG) Part # CONN-00119
	» 1 x Sumitomo HX / DL / SL Sealed Series Female terminal 18 - 16 AWG Terminal, loose piece Part # CONN-100452
	» 1 x 1 Way Sumitomo SL 090 2.3mm Connector for older model sensors Part # CONN-101539
