6 Way Sumitomo TS090 Connector Plug Pigtail for some Toyota applications, 90980-12635, 90980-11194 90980-11663	Part # CONN-86410

Pricing
1 +	$13.99
Information
Bmotorsports Part #	CONN-86410
Availability	In Stock
Shipping Weight	0.025 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

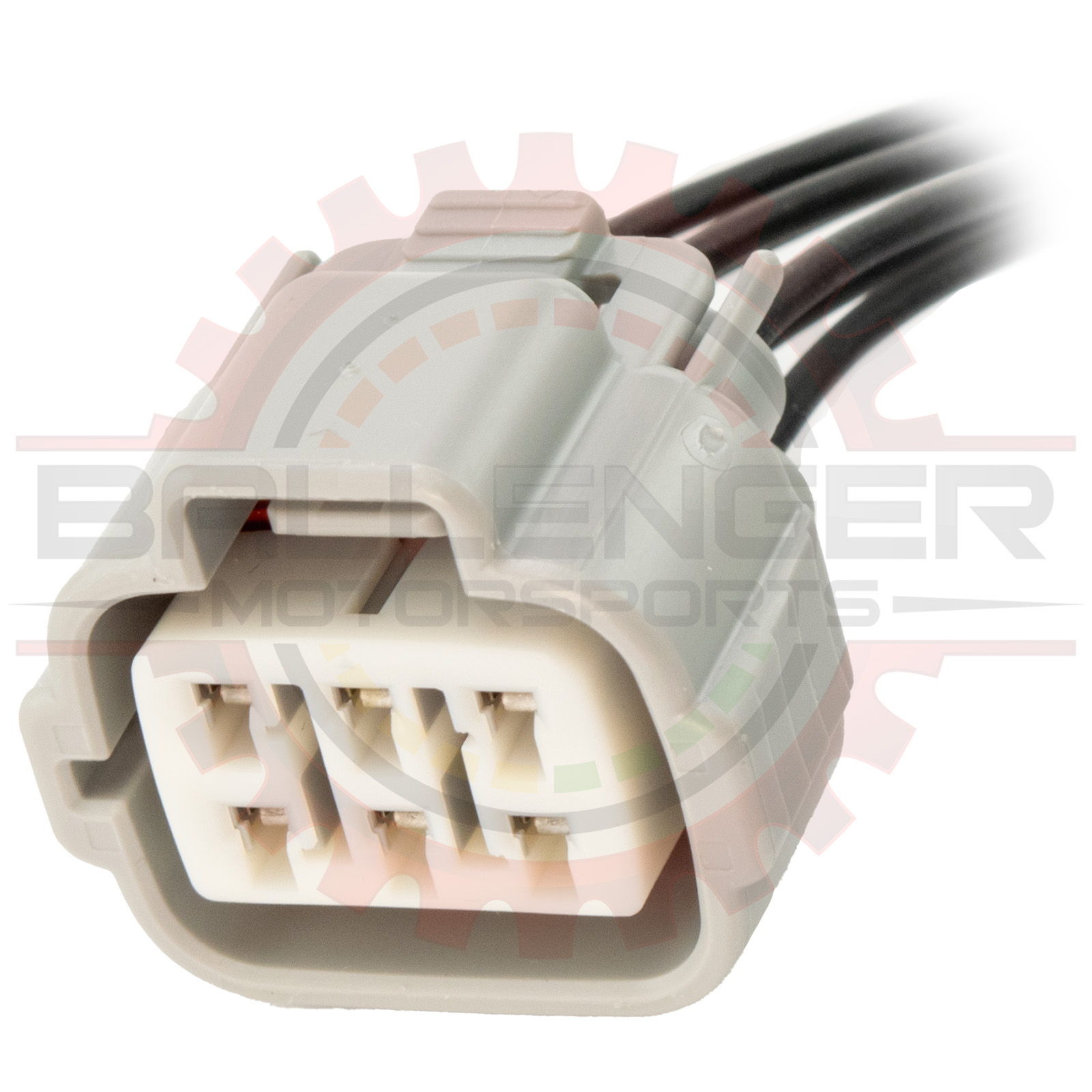

6 Way Sumitomo TS090 Connector Plug Pigtail for some Toyota applications. Populated pigtail with 12" wire leads.

Accelerator Pedal Connector for Toyota 90980-12635, 90980-11194 90980-11663
Also found on Toyota Corolla Headlamps

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminal	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seal	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector	CONN-101506	6 Way Sumitomo TS090 Connector Plug for some Toyota applications, 90980-12635, 90980-11194 90980-11663
Kit	CONN-76410	6 Way Sumitomo TS090 Connector Plug Kit for some Toyota applications, 90980-12635, 90980-11194 90980-11663
Pigtail	CONN-86410	6 Way Sumitomo TS090 Connector Plug Pigtail for some Toyota applications, 90980-12635, 90980-11194 90980-11663

Specifications

Parameter Value
Number of Ways 6
Gender Plug/Male
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

This product contains the following items:
	» 6 x 18AWG Automotive TXL Wire Black Part # WIRE-00459s
	» 6 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge ) Part # CONN-00145
	» 6 x Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG ) Part # CONN-11856
	» 1 x 6 Way Sumitomo TS090 Connector Plug for some Toyota applications, 90980-12635, 90980-11194 90980-11663 Part # CONN-101506
