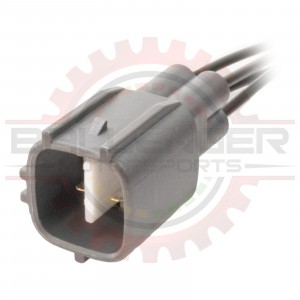

4 Way Receptacle Pigtail for Subaru & Toyota Oxygen Sensor, Alternate Keyway	Part # CONN-86414

Pricing
1 +	$12.99
Information
Bmotorsports Part #	CONN-86414
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

4 Way Receptacle Pigtail for Subaru & Toyota Oxygen Sensor, Alternate Keyway. Fully populated 12" pigtail is provided.

Used on a wide variety of Toyota, Subaru, & other Japanese applications for oxygen sensors or o2 sensors.

Associated & Mating Parts

Relationship	Part #	Description
Associated Connectors
Connector Only, Alt Key	CONN-101658	4 Way Receptacle Assembly for Subaru & Toyota Oxygen Sensor, Alternate Keyway
Terminals	CONN-100069	Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Pigtail, Alt Key	CONN-86414	4 Way Receptacle Pigtail for Subaru & Toyota Oxygen Sensor, Alternate Keyway
Mating Connectors
Connector Only, Alt Key	CONN-101657	4 Way Plug Assembly for Subaru & Toyota Oxygen Sensor, Alternate Keyway
Terminals	CONN-11857	Yazaki Female Terminals for 2 way 090 IAT / MAT Connector ( 22 - 20 AWG )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Pigtail, Alt Key	CONN-86413	4 Way Plug Pigtail for Subaru & Toyota Oxygen Sensor, Alternate Keyway
Extension
Extension, Alt Key	CONN-86415	4 Way Extension for Subaru & Toyota Oxygen Sensor, Alternate Keyway
Associated Other
Connector Only	CONN-100708	4 Way Plug Assembly for Subaru & Toyota Oxygen Sensor (Connector + Lock)
Terminals	CONN-11856	Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG )
Seals	CONN-00145	Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge )
Connector Kit	CONN-75835	4 Way Plug Kit for Subaru & Toyota Oxygen Sensor
Connector Pigtail	CONN-85835	4 Way Plug Pigtail for Subaru & Toyota Oxygen Sensor
Connector Only	CONN-100709	4 Way Receptacle Assembly for Subaru & Toyota Oxygen Sensor (Connector + Lock)
Connector Kit	CONN-75836	4 Way Receptacle Kit for Subaru & Toyota Oxygen Sensor
Connector Pigtail	CONN-85836	4 Way Receptacle Pigtail for Subaru & Toyota Oxygen Sensor
Extension	CONN-85837	4 Way Extension for Subaru & Toyota Oxygen Sensor

Applications

Applications:

Toyota Oxygen Sensor connector for many models & years
Subaru Oxygen Sensor connector for many models & years
Many applications not listed

Specifications

Parameter Value
Number of Ways 4
Gender Receptacle/Female
Terminal Size 2.3mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

This product contains the following items:
	» 4 x 18AWG Automotive TXL Wire Black Part # WIRE-00459s
	» 4 x Sumitomo HM / MT / TS Sealed Series wire seal, black ( 20 - 16 gauge ) Part # CONN-00145
	» 4 x Sumitomo TS Sealed Series Male Terminal, Brass/Tin ( 20 - 16 gauge ) Part # CONN-100069
	» 1 x 4 Way Receptacle Assembly for Subaru & Toyota Oxygen Sensor, Alternate Keyway Part # CONN-101658
