Description

Easy to install. Affordable. Reliable.

G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.
This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

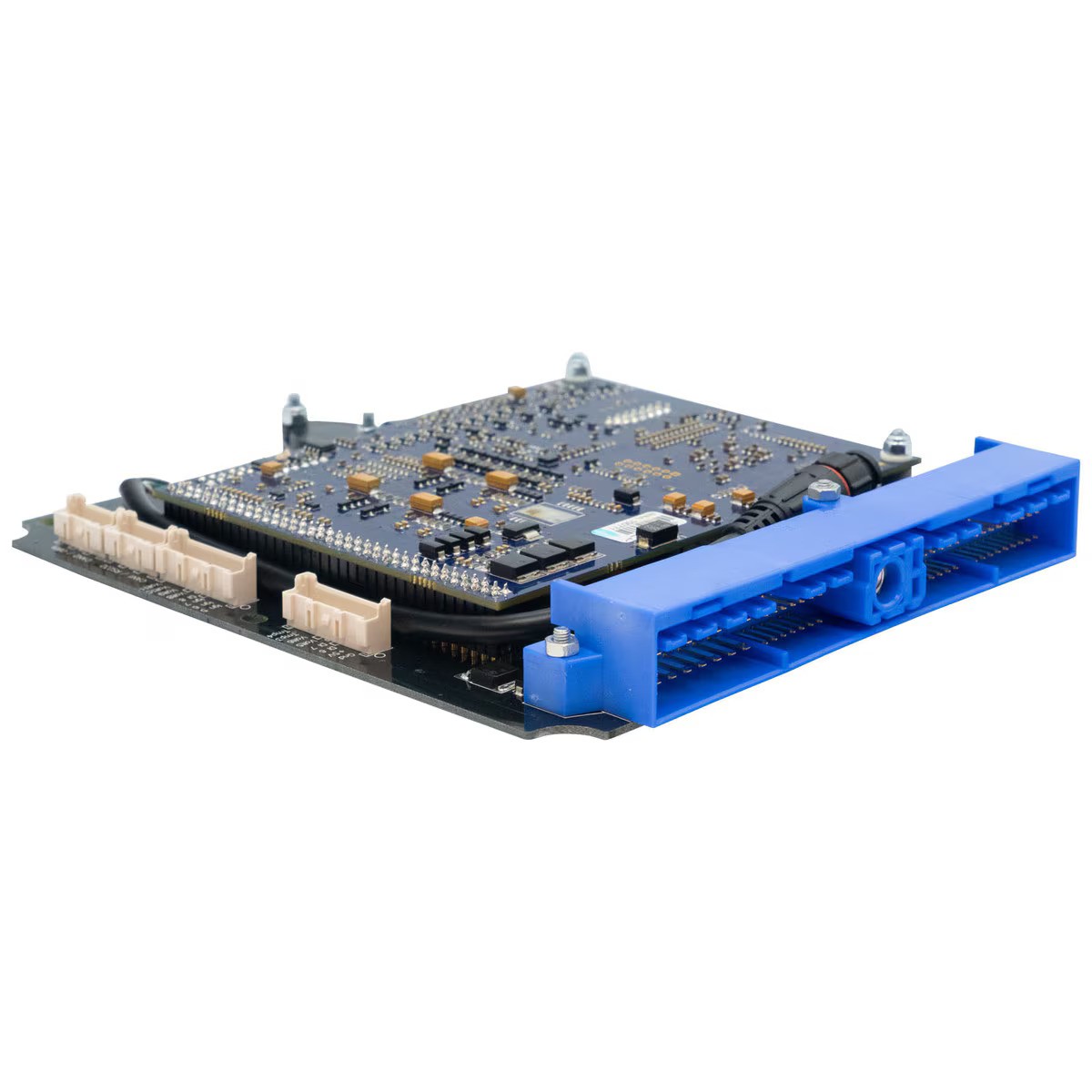

Designed for theSR20 engine. This ECU will work with the 64 pin, blue header plug ECU version.

• Please check your connector matches the header in the listed photo before purchasing.
• This ECU works for manual transmissions only.
• ECU includes an onboard 7 bar MAP sensor.
• Most factory features are supported.
• Check the features tab for I/O expansion options.
  • This ECU now includes E-Throttle as standard.
  • Now with 4 pin powered CAN connector (See note below).

Suitable Applications: S13 Silvia / 180SX SR20DET (but not CA18DET)
S14a Silvia (facelift) SR20DET
S15 Silvia SR20DET
S15 Silvia SR20DE
RNN14 Pulsar GTI-R SR20DET
N15 Pulsar SR16VE
N14 Distributed
*For the 76 pin header ECU, have a look at the S13X PlugIn listing.
Note: This Plug-in features a new 4 pin powered CAN connector and cannot use the old CANPCB cable for CAN connection. Use the CANJST4 (Code 101-0198) cable for connecting CAN devices. This new 4 pin port and cable provide not only the CAN connection, but also a protected 12V power supply and ground for powering the CAN devices. The power supply is protected by a self-resetting fuse rated at 3A continuous.

Features

• Up to 6D fuel and ignition mapping
• Precision closed-loop cam control (four cam, independent control)
• Sequential fuel delivery
• Digital triggering, compatible with all OEM patterns
• OEM idle hardware supported
• 5D boost control with three switchable tables
• Motorsport features: antilag, launch control, flat shift
• Continuous barometric correction (onboard sensor)
• CAN port for expanded communication
• QuickTune - automated fuel tuning system
• Individual cylinder correction for fine-tuned performance
• USB tuning cable included
• Onboard memory for stats recording
• Gear compensations for spark, boost, and fuel
• Real-time selectable dual fuel, ignition, and boost maps
• Sync and crank sensors compatible with Hall effect, variable reluctance, or optical sensors
• Boost control referenced to gear, speed, or throttle position
• 512MB onboard data logging memory
• Staged injection capability
• Knock detection with "windowing" technology

I/O Expansion Options

The following expansion connector inputs/outputs are provided:

• Onboard MAP - An Volt 3
• E-Throttle Relay - Aux 12

Expansion Connectors

• Expansion 1 - Signal Ground
• Expansion 2 - +5V Out
• Expansion 3 - An Volt 5
• Expansion 4 - An Volt 6
• Expansion 5 - An Volt 7
• Expansion 6 - An Volt 8
• Expansion 7 - Aux 9
• Expansion 8 - Aux 10
• Expansion 9 - Signal Ground
• Expansion 10 - +5V Out
• Expansion 11 - Aux 11
• Expansion 12 - DI 6
• Expansion 13 - DI 7
• Expansion 14 - An Volt 9
• Expansion 15 - An Temp 3
• Expansion 16 - An Temp 4

Download Manual
Click here to download the user manual.

Specifications

G4X Plug-in ECU Specifications

Inputs/Outputs

• 6 or 8 x High Current Injector Drives (suits high impedance injectors)
• 6 or 8 x Ignition Channels
• 8 x Auxiliary Outputs (All PWM capable, Aux5-8 can control Stepper Motors)
• 11 Digital Inputs (All capable of reading frequencies up to 10kHz)
• +5V Out
• 4 Temperature Inputs (Configurable pull-ups on ANT1&2)
• 12 x 0-5V Analog Inputs
• 2 x Trigger Inputs (Reluctor, Optical, or Hall Sensors)
• On Board Barometric Pressure Sensor
• 3 Axis Accelerometer

Fuelling Adjustments

• Traditional, Modelled, and Modelled Multi-Fuel Equations
• Multiple Injection Modes (Sequential, Semi-Sequential, Group Staged, etc.)
• Quick Tune (Automated fuel tuning)
• Up to 440 Zone Fuel Table with configurable load and RPM centres
• Multiple Fuel Tables and 6D Fuel Mapping
• Injector Deadtime and Short Pulse Width Compensation
• Dual Closed Loop Lambda
• Individual Cylinder Fuel Trims
• Fuel Temperature Correction and Barometric Pressure Compensation

Ignition Adjustments

• Distributor, Twin Distributor, Wasted Spark, Direct Spark, Rotary Ignition Modes
• Up to 440 Zone Ignition Table with configurable X and Y Axis Parameters
• Configurable Maximum Advance and Spark Duration
• Multiple Ignition Tables and 6D Ignition Mapping
• Individual Cylinder Ignition Trim
• Ignition Test Function and Adjustable Ignition Delay Compensation

Limits

• Engine Temperature Dependent Progressive Limiting
• Dual Vehicle Speed Limits
• System Voltage Limit
• User Configurable RPM Limits
• MAP Limit with dual tables
• Selectable Fuel or Ignition Limiting
• Adjustable Control Range and Cut Effect Selection

Auxiliary Output Options

• Each Output Independently Configurable
• General Purpose Outputs and PWM Outputs
• Fuel Pump and Fan Control
• Intercooler Spray, Tacho, and Speedo Control
• Oxygen Sensor Heater, Purge Solenoid, and ECU Hold Power Control
• Boost Control Solenoid and Shift Light Control

Digital Inputs

• Each Channel Independently Configurable
• All Digital Inputs Capable of Reading Frequencies up to 10kHz
• Turbo Speed and Ethanol Sensor Control
• Anti-Theft Control
• Wheel Speed Detection and General Purpose Switches

Analog Inputs

• Each Input Independently Configurable with Custom Calibrations
• Built-in 3 Axis Accelerometers
• Large Number of Built-in Calibrations
• 10 Calibration Tables and 3 Linear Calibrations

Triggering

• Digital Trigger Decoding
• Supports Reluctor, Optical, or Hall Sensors
• Programmable Filtering and Arming Thresholds
• Configurable Trigger Patterns
• Supports OEM Trigger Patterns

Programmable Math Processing

• Eight individually controllable math channels with up to four parameters in each
• Math channels can be used as table axes and as digital or analog inputs

Motorsport Features

• Anti-Lag
• Launch Control
• Gear Shift Control (Digital Inputs, Gear Lever Force, or Gear Barrel Position)
• Traction Control

Anti-Lag System

• Dual 3D Fuel Enrichment, Ignition Cut, and Ignition Retard Tables
• Optional Cyclic Idle (Normal and Cool-Down)
• Optional 3D Idle Controller Override Tables
• Lockout Conditions Based on Engine Speed and Throttle Position

Launch Control

• Single RPM, 3D RPM Table, or Latched Launch Modes
• Progressive Cut Control
• Selectable Fuel or Ignition Limiting
• Selectable Cut Effect (Adaptive or Constant)
• Adjustable Control Range
• Vehicle Speed Controlled
• Ignition Trim with Optional 3D Table
• Optional 3D Fuel Trim Table

Gear Shift Control

• Supports Digital Input, Gear Lever Force, and Gear Barrel Position Sensor
• Timed or Controlled Modes
• Adjustable Progressive Cut Levels
• Power Reintroduction Control
• Ignition Retard Control
• Fuel Enrichment Control
• Cut Duration Based on Gear

Traction Control

• Disable Switch
• Various Lockout Conditions
• Multiple 3D Slip Threshold Tables
• Advanced Torque Management System for Improved Driveability

Idle Control

• Solenoid, Stepper, or E-Throttle Control
• Open or Closed Loop Actuator Control
• Closed Loop Ignition Control
• Multiple Position Offsets for Open Loop
• Specific Start-Up Offsets and Hold Times
• Dashpot Functionality to Smooth Re-Entry into Idle

Electronic Throttle Control

• Internal E-Throttle Controller with External Support
• Multiple 3D Target Tables

Boost Control

• Open or Closed Loop Boost Control
• Multiple Target and Base Position Tables
• Multiple Trim Tables
• Boost by Gear Control

Knock Control

• 2 Built-In Knock Inputs
• Fuel Enrichment and Ignition Retard Functionality
• Adjustable Frequency Filter
• Adjustable Gain per Cylinder
• Individual Cylinder Detection
• Noise Threshold Table (3D)
• Adjustable Ignition Retard and Fuel Enrich Sensitivity

Variable Valve Timing Control

• Up to 4 Cams Independent Control
• Supports Many OEM Applications
• Closed Loop Control
• Multiple 3D Cam Angle Target Tables
• Advanced PID Control Options
• Automatic Cam Angle Calibration

Chassis and Body

• AC Control (Basic and Advanced Modes)
• Anti-Theft via Digital Input, CAN, or Both
• Speed-Based Cruise Control (E-Throttle Only)
• Gear Detection via CAN, RPM/Speed, or Analog Position Sensor
• Individual Wheel Speed Sources
• Starter Control with Multiple Options
• Torque Management

Logging

• 512 Megabytes of Data Logging
• Up to 250 ECU Logging Channels
• Up to 1kHz per Channel with Max Sample Rate of 100kSamples/s
• Unlimited Channels with PCLink Logging

Communications

• Tuning Port USB On Board
• Two CAN Buses
• Custom CAN Configuration

Processing

• 150 MHz Specialized Engine Management Microprocessor
• Ignition Control to 0.1 Degree, Fuel to 0.01ms
• 32-Bit Floating-Point Calculation
• 12 Bit ADC Resolution
• Supports 20000+ RPM
• 4Gb Non-Volatile Flash

Environment

• Internal Temperature Range: -10°C to 85°C
• Ambient Temperature Range: -30°C to 90°C
• Voltage: 8V - 22V
• Operating Current: 200mA
• Electrical Protection on all Inputs and Outputs
• Onboard Barometric Pressure Sensor

Packaging Contents

• G4X Plug-in ECU
• Wiring and Installation Instructions
• 2 Large Link Stickers
• 2 Small Link Stickers

Manufacturing Standard - ISO 13485 Certified
