Description

Easy to install. Affordable. Reliable.

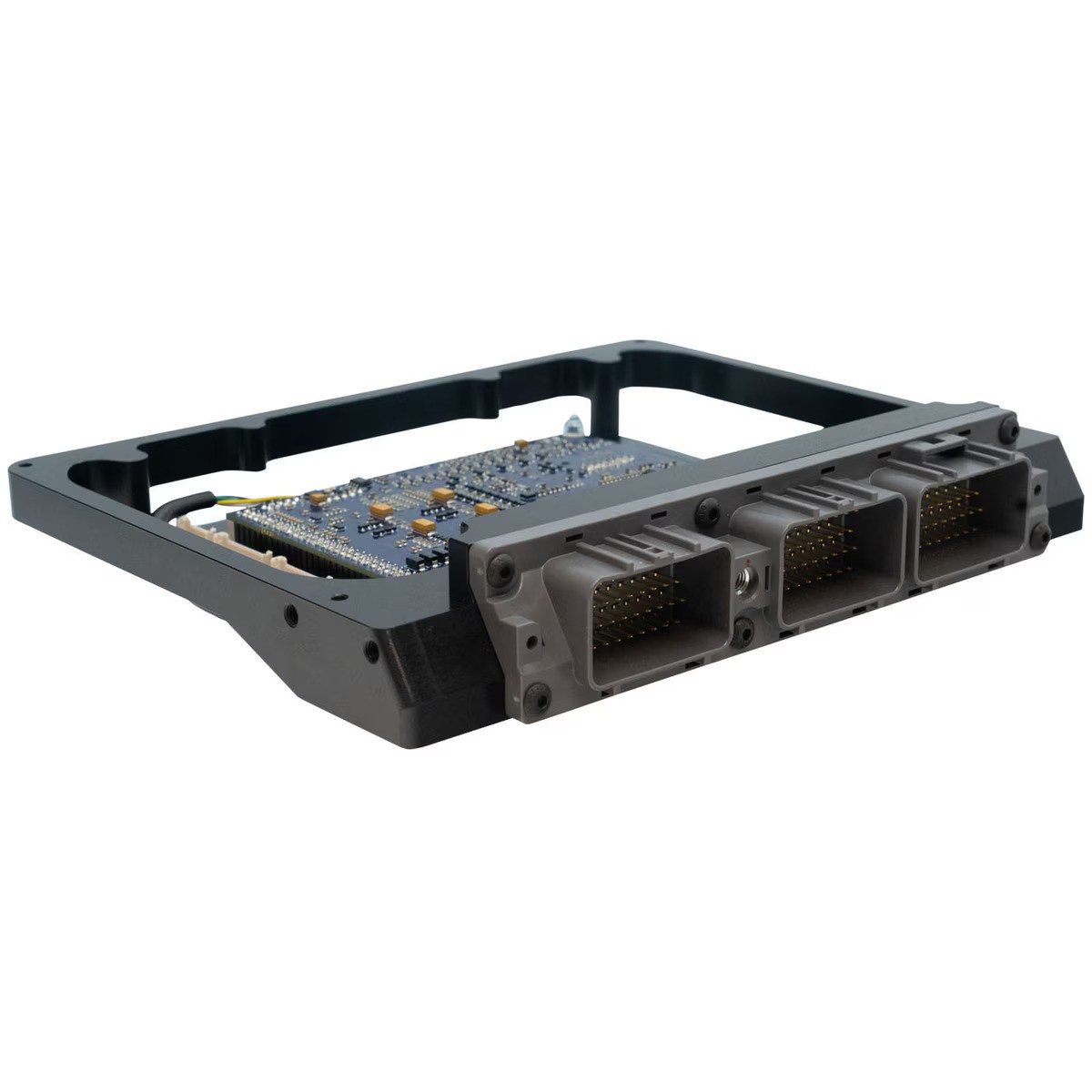

G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.
This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

Designed for the 2JZ non VVTi engine.

• Please check your connector matches the header in the listed photo before purchasing.
• This ECU works for manual transmissions only.
• No onboard MAP sensor.
• XS Loom & map sensor highly recommended.
• Most factory features are supported.
• Check the features tab for I/O expansion options

Suitable applications:

• Toyota Supra 2JZ non VVTi
• This ECU will support naturally aspirated, parallel twin or single turbo configurations. Does not support sequential control of the stock twin turbos (note: does not fit case of the NA supra)

Features

G4X PlugIn Key Features (where applicable):

• Up to 6D fuel and ignition mapping
• Precision closed loop cam control (four cam, independent control)
• Sequential fuel delivery
• Digital triggering, all OEM patterns
• OEM idle hardware supported
• 5D boost control with three switchable tables
• Motorsport features - antilag, launch, flat shift
• Continuous barometric correction (on board)
• CAN port
• QuickTune - automated fuel tuning
• Individual cylinder correction
• USB tuning cable included
• Stats recording into on-board memory
• Gear compensations for spark, boost, and fuel
• Real-time selectable dual fuel, ignition, and boost maps
• Sync and crank sensors can be a combination of Hall effect, variable reluctance, or optical
• Boost control referenced to gear, speed, or throttle position
• 512 megabytes data logging memory
• Staged injection
• Knock with "windowing"

I/O Expansion Options

The Toyota Supra plug-in ECU has two expansion connectors.
From PCB revision 1.2:

Expansion Connector 1:

• Gnd - Sensor Ground Only
• +5V Out - Low Current +5V Supply
• An Volt 7 - Analog 0-5V input
• An Volt 6 - Analog 0-5V input
• An Temp 4 - Temperature sensor input
• An Temp 3 - Temperature sensor input
• DI 8 - Digital input
• DI 7 - Digital input

Expansion Connector 2:

• Gnd - Sensor Ground Only
• +5V Out - Low Current +5V Supply
• Aux 9 - EThrottle (can't be used as an Aux Out)
• DI 9 - Digital input
• DI 10 - Digital input
• An Volt 8 - Analog 0-5V input
• An Volt 9 - Analog 0-5V input
• An Volt 10 - Analog 0-5V input

Download Manual

Specifications

G4X Plug-in ECU Specifications

Given the constraints of the factory header and car setup, a G4X Plug-in ECU is capable of the following features, if it supports them.

Inputs/Outputs

• 6 or 8 x High Current Injector Drives dependent on the ECU configuration (suits high impedance injectors)
• 6 or 8 x Ignition Channels dependent on the ECU configuration
• 8 x Auxiliary Outputs (All PWM capable). Aux5-8 can control Stepper Motors and drive High or Low
• 11 Digital Inputs (All capable of reading frequencies up to 10kHz)
• +5V Out
• 4 Temperature Inputs (Configurable pull-ups on ANT1&2)
• 12 x 0-5V Analog Inputs
• 2 x Trigger Inputs (Reluctor, Optical, or Hall Sensors)
• On Board Barometric Pressure Sensor
• 3 Axis Accelerometer

Fuelling Adjustments

• Traditional, Modelled, and Modelled Multi-Fuel Equations
• Single-Point Group, Multi-Point Group, Sequential, Semi-Sequential, Group Staged, Sequential Staged, and Sequential/Multi-Point Group Staged injection modes
• Asynchronous injection (can add more fuel after initial injection if conditions change)
• Quick tune (automated fuel tuning)
• Up to 440 Zone Fuel Table with configurable load and RPM centres. Configurable X and Y Axis Parameters
• Multiple Fuel Tables
• Up to 6D Fuel Mapping (3D Fuel Table + 3x3D Overlay trim tables)
• Injection Rate Control for Group Injection Modes
• Master Enrichment for Traditional Fuel tuning
• Pre-Crank Prime
• First Crank Prime
• Crank Enrichment
• Post Start Enrichment
• Warm Up Enrichment
• Acceleration Enrichment
• IAT Fuel Correction
• Injector Deadtime Compensation
• Injector Short Pulse Width Compensation
• Injector Timing Control with Beginning, Middle, or End Injection Definable
• AFR Table Correction
• Dual Closed Loop Lambda
• Individual Cylinder Fuel Trims
• Overrun Fuel Cut
• Idle Load Trims
• Fuel Temperature Correction
• Barometric pressure compensation
• Injector test function

Ignition Adjustments

• Distributor, Twin Distributor, Wasted Spark, Direct Spark, Rotary leading Wasted, and Rotary Leading Direct Ignition Modes
• Up to 440 Zone Ignition Table with configurable load and RPM centres. Configurable X and Y Axis Parameters
• Configurable Maximum Advance
• Configurable Spark Duration
• Configurable Spark Edge
• Dwell Time table with configurable X and Y Axis Parameters
• Multiple Ignition Tables
• Up to 6D Ignition Mapping (3D Ignition Table + 3x3D Overlay Trim Tables)
• Individual Cylinder Ignition Trim
• IAT Trim
• Voltage Correction
• ECT Trim
• OEM Compatibility
• CDI Compatibility
• Transient ignition retard
• Adjustable ignition delay compensation
• Ignition test function
• Idle ignition control

Limits

• Engine Temperature Dependent Progressive Limiting
• Dual Vehicle Speed Limits
• System Voltage Limit
• User Configurable RPM Limits based on external input
• MAP Limit with dual tables
• Optional hard cut
• Progressive cut control
• Selectable fuel or ignition limiting
• Ignition trim and configurable trim decay
• Adjustable control range
• Selectable cut effect (adaptive or constant)

Auxiliary Output Options

• Each Output independently configurable
• Unused ignition and Fuel outputs available as auxiliary outputs
• General Purpose Outputs
• General Purpose PWM Outputs
• Fuel Pump Control
• Fuel Pump Speed Control
• Engine Fan Control
• Air Con Clutch Control
• Air Con Fan Control
• Intercooler Spray Control
• Tacho Control
• Speedo Control
• Check Engine Light
• Purge Solenoid
• Oxygen Sensor Heater
• Switched Cam Solenoid Control
• ECU Hold Power Control
• Shift Light Control
• Starter Control
• VVT Cam Solenoid
• Boost Control Solenoid
• Test functions for each output
• Closed loop Stepper Control & Rotary Oil Pump Control
• Idle Speed Solenoid
• Idle Speed Stepper
• Internal e-throttle Controller
• External e-throttle

Digital Inputs

• Each channel independently configurable with pull-up resistors and active state control
• All digital inputs capable of reading frequencies of up to 10kHz
• Duty Cycle measuring on all digital inputs
• Turbo speed
• Ethanol Sensor Control
• Wheel Speed Detection on all digital inputs with additional general-purpose speed inputs
• Anti-Theft control through digital inputs, over CAN, or both
• General Purpose switches, speeds, RPMs, and frequencies
• Large variety of input types

Analog Inputs

• Each input independently configurable with preset or custom calibrations and configurable fault conditions
• Built-in 3-axis accelerometers
• Built-in Barometric Pressure Sensor
• Large variety of Analog input functions
• General Purpose Temperatures, Pressures, Rotary Switches, and more
• Analog Inputs can also be used as Digital Inputs
• Large number of built-in calibrations
• Ten Calibration Tables and 3 Linear Calibrations for when a custom calibration is required

Triggering

• Digital Trigger Decoding
• Reluctor, Optical Proximity, or Hall Sensors
• Programmable filtering and arming thresholds
• Configurable trigger patterns or preset triggering options
• Supports nearly all OEM trigger patterns and custom trigger arrangements

Programmable Math Processing

• Eight individually controllable math channels with up to four parameters in each
• Math channels can be used as table axes and as digital or analog inputs

Motorsport Features

• AntiLag
• Launch control
• Gear Shift Control (Digital Inputs, Gear Lever Force, or Gear Barrel Position)
• Traction control

AntiLag System

• Dual 3D Fuel enrichment, Ignition cut, and Ignition retard Tables
• Optional Cyclic idle (normal and cool-down)
• Optional 3D Idle controller Override Tables (one for antilag and one for Cyclic Idle)
• Lockout conditions based on engine speed and throttle position with hysteresis

Launch Control

• Single RPM, 3D RPM Table, or Latched (RPM when button pressed) Launch modes
• Progressive cut control
• Selectable fuel or ignition limiting
• Selectable cut effect (adaptive or constant)
• Adjustable control range
• Vehicle speed controlled
• Ignition Trim with optional 3D table and relative or absolute ignition angle options
• Optional 3D Fuel Trim table

Gear Shift Control

• Digital input (clutch switch), gear lever force (sequential gearbox), gear lever force (H pattern gearbox), and gear barrel position sensor input options
• Timed or controlled modes
• Adjustable progressive cut levels
• Power re-introduction control
• Ignition retard control
• Fuel enrichment control
• Cut duration based on gear

Traction Control

• Disable switch
• Various Lockout conditions
• Multiple 3D slip Threshold tables
• Traction Control - controlled tyre slip to improve vehicle safety and drivability
• Uses an advanced Torque Management system to reduce engine torque

Idle Control

• Solenoid, Stepper, or E-throttle Control
• Open or Closed loop actuator control and Closed loop Ignition control available
• Large variety of position offsets for open loop and additional target offsets for closed loop actuator control
• Specific start-up offsets and hold times
• Dashpot functionality to smooth re-entry into idle and prevent undershoot

Electronic Throttle Control

• Has an internal E-throttle Controller and supports external controllers
• Multiple 3D target tables

Boost Control

• Open or Closed Loop Boost Control
• Multiple Target and Base Position Tables
• Multiple Trim tables
• Boost by Gear control

Knock Control

• 2 Built-in Knock inputs
• Fuel Enrichment and Ignition Retard functionality
• Adjustable frequency filter
• Adjustable gain (per cylinder)
• Individual cylinder detection
• Individual cylinder ignition retard and fuel enrich
• Adjustable detection angle (start/end)
• Noise threshold table (3D)
• Adjustable ignition retard and fuel enrich sensitivity
• Configurable ignition reintroduction and fuel enrich decay

Variable Valve Timing Control

• Up to 4 cams independent control
• Supports many OEM applications
• Closed loop control
• Multiple 3D Cam angle target tables
• Optional advanced PID control settings for advanced tuners
• Automatic function for calibrating cam angles

Chassis and Body

• AC Control - Basic and Advanced modes available
• Anti-Theft - Via Digital Input, CAN, or both
• Speed-based cruise control (E-throttle only)
• Gear Detection - CAN, RPM/Speed, or Analog Position Sensor
• Individual wheel speed sources with the ability to specify Driving and Non-Driving wheel speed sources
• Starter control - Multiple options available from very basic to Touch to start.
• Torque Management

Logging

• 512 Megabytes of Datalogging
• Up to 250 ECU Logging channels
• Up to 1kHz per channel with a maximum total sample rate of 100kSamples/s when using ECU Logging
• Unlimited channels when using PCLink logging

Communications

• Tuning Port USB on board
• Two CAN buses
• Custom CAN configuration allowing tuners and end users to add support for new CAN devices

Processing

• 150 MHz Specialised Engine Management Microprocessor
• Ignition control to 0.1 degree, fuel to 0.01 ms
• 32-Bit Floating-Point Calculation
• 12 Bit ADC Resolution
• 20000+ RPM
• 4Gb Non-Volatile Flash

Environment

• Internal Temperature Range -10 - 85°C
• Ambient Temperature Range -30 - 90°C
• Voltage 8 - 22V
• Operating Current 200mA
• Electrical protection on all inputs and outputs
• Onboard Barometric Pressure Sensor

Packaging Contents

• G4X Plug-in ECU
• Wiring and Installation Instructions
• 2 large Link Stickers
• 2 small Link Stickers

Manufacturing Standard – ISO 13485
