Home » Shop » Connectors / Harnesses » Delphi / Packard » Connectors » GM Delphi / Packard - 5 way metripack 150.2 MAF & IGN1A Ignition Coil Connector

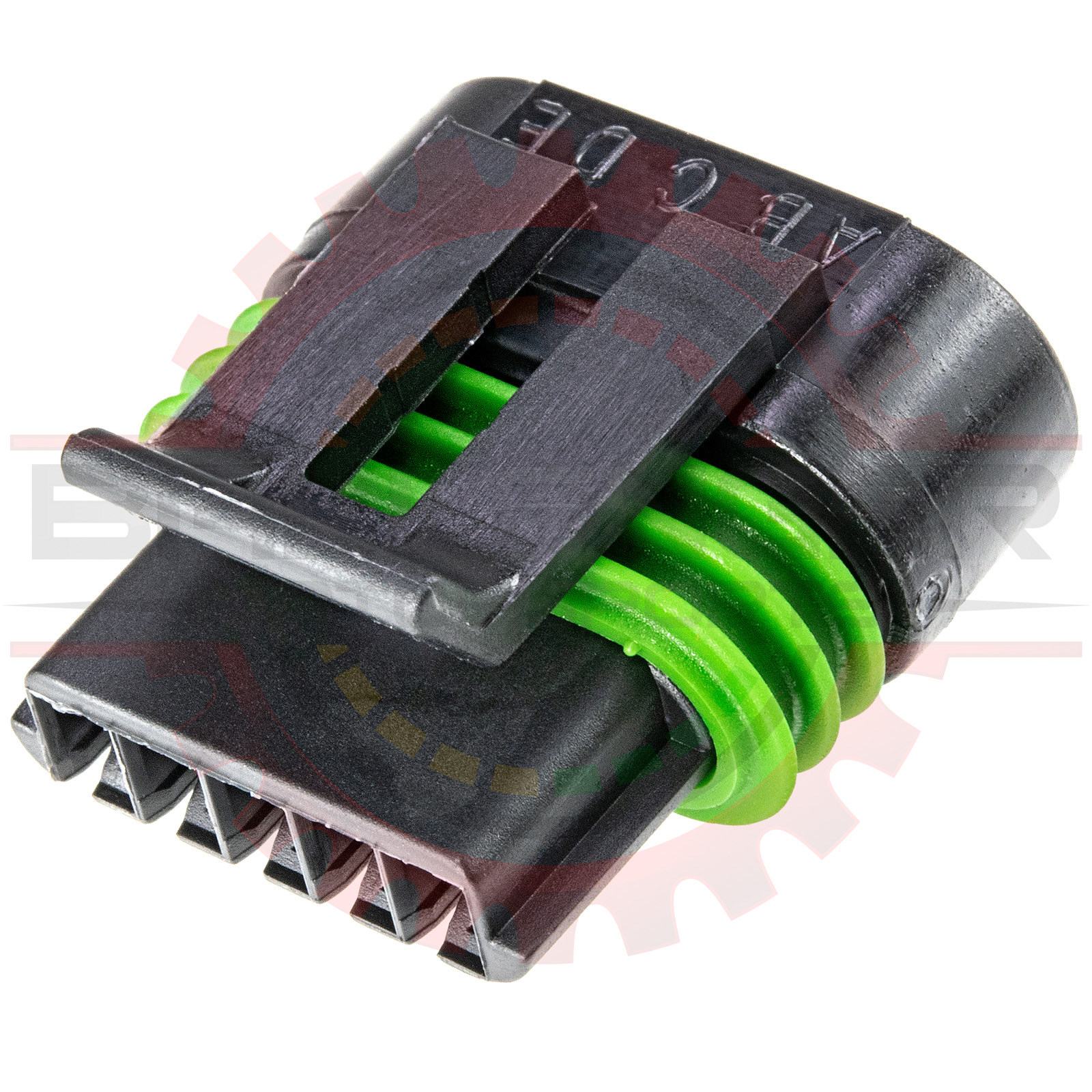

GM Delphi / Packard - 5 way metripack 150.2 MAF & IGN1A Ignition Coil Connector	Part # CONN-51860

Pricing
1 +	$7.99
5 +	$6.49
25 +	$5.49
50 +	$4.99
Information
Bmotorsports Part #	CONN-51860
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

GM Delphi / Packard - 5 way metripack 150.2 MAF Connector Only, no terminals included.

NOTICE: This part is OBSOLETE for MAF Applications.
However, it is still the preferred connection for Mercury Marine IGN-1A (IGN1A) Ignition Coils, such as IGNT-00175

See the following if it better suits your application:
Connector Only: CONN-51866
Connector Kit: CONN-75649
Connector Pigtail: CONN-85649

Or if you would like a push to seat option equivalent to this listing:
Hand-Modified Connector Only: CONN-51874
Hand-Modified Connector Kit: CONN-76206
Hand-Modified Connector Pigtail: CONN-86206

Associated & Mating Parts

Relationship	Part #	Description
Associated Ignition Coil
IGN1A	IGNT-00175	IGN1A High Output Smart Ignition Coil
Associated Pull to Seat Parts
Connector Only	CONN-51860	GM Delphi / Packard - 5 way metripack 150.2 MAF & IGN1A Ignition Coil Connector
Terminals	CONN-56155	GM Delphi / Packard - 150.2 Metri-Pack ( Metripack ) Female Terminal ( 22 - 18 gauge ) [Pull to seat]
Connector Kit	CONN-75627	GM Delphi / Packard - 5 way metripack 150.2 MAF & IGN1A Ignition Coil Connector Kit
Connector Pigtail	CONN-85627	GM Delphi / Packard - 5 way metripack 150.2 MAF & IGN1A Ignition Coil Connector Pigtail
Mating Parts
Connector Only	CONN-100728	5 Way Connector Receptacle for MAF & Sensor Applications
Terminals	CONN-100730	Pull to seat Male Terminal for 150.2 & GT 150 3.5mm receptacles in 3,4,5,6 way
Connector Kit	CONN-75862	5 Way Connector Receptacle Kit for MAF & Sensor Applications
Connector Pigtail	CONN-85862	5 Way Connector Receptacle Pigtail for MAF & Sensor Applications
Associated Push to Seat Parts
Terminals	CONN-56468	GM Delphi / Packard - GT 150 3.5mm Centerline Female Terminal, 18 gauge [ .75 - .8mm2] Tin Plated
Seals	CONN-56559	GM Delphi / Packard - GT 150 Cable Seal, Yellow ( 20 - 16 gauge ) for 3.5mm centerline only
Hand-Modified Equivalent Connector Only	CONN-51874	5 Way GT 150 3.5mm Centerline Connector Assembly for IGN1A
Hand-Modified Equivalent Kit	CONN-76206	5 Way GT 150 3.5mm Centerline Connector Kit for IGN1A
Hand-Modified Equivalent Pigtail	CONN-86206	5 Way GT 150 3.5mm Centerline Connector Pigtail for IGN1A
Connector Only (not for IGN1A)	CONN-51866	5 Way GM MAF Connector Plug Assembly for LS2, LS6, Truck, & some LS1
Connector Kit (not for IGN1A)	CONN-75649	5 Way GM MAF Connector Plug Kit for LS2, LS6, Truck, & some LS1
Connector Pigtail (not for IGN1A)	CONN-85649	5 Way GM MAF Connector Plug Pigtail for LS2, LS6, Truck, & some LS1
Extension	CONN-85943	5 Way GM MAF Connector Extension for LS2, LS6, Truck, & some LS1
LS7/LS3 MAF to LS2 Harness Adapter	CONN-85804	GM Delphi / Packard - LS2 Harness to LS7 / LS3 MAF Sensor Adapter

Specifications

Parameter Value
Number of Ways 5
Gender Plug/Male
Terminal Size 1.5mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 18

Used In

Part #	Description
CONN-75627	GM Delphi / Packard - 5 way metripack 150.2 MAF & IGN1A Ignition Coil Connector Kit
CONN-85627	GM Delphi / Packard - 5 way metripack 150.2 MAF & IGN1A Ignition Coil Connector Pigtail
