Home » Shop » Connectors / Harnesses » Tyco / AMP » Dodge / AMP SSC straight keyway plug 4 way connector

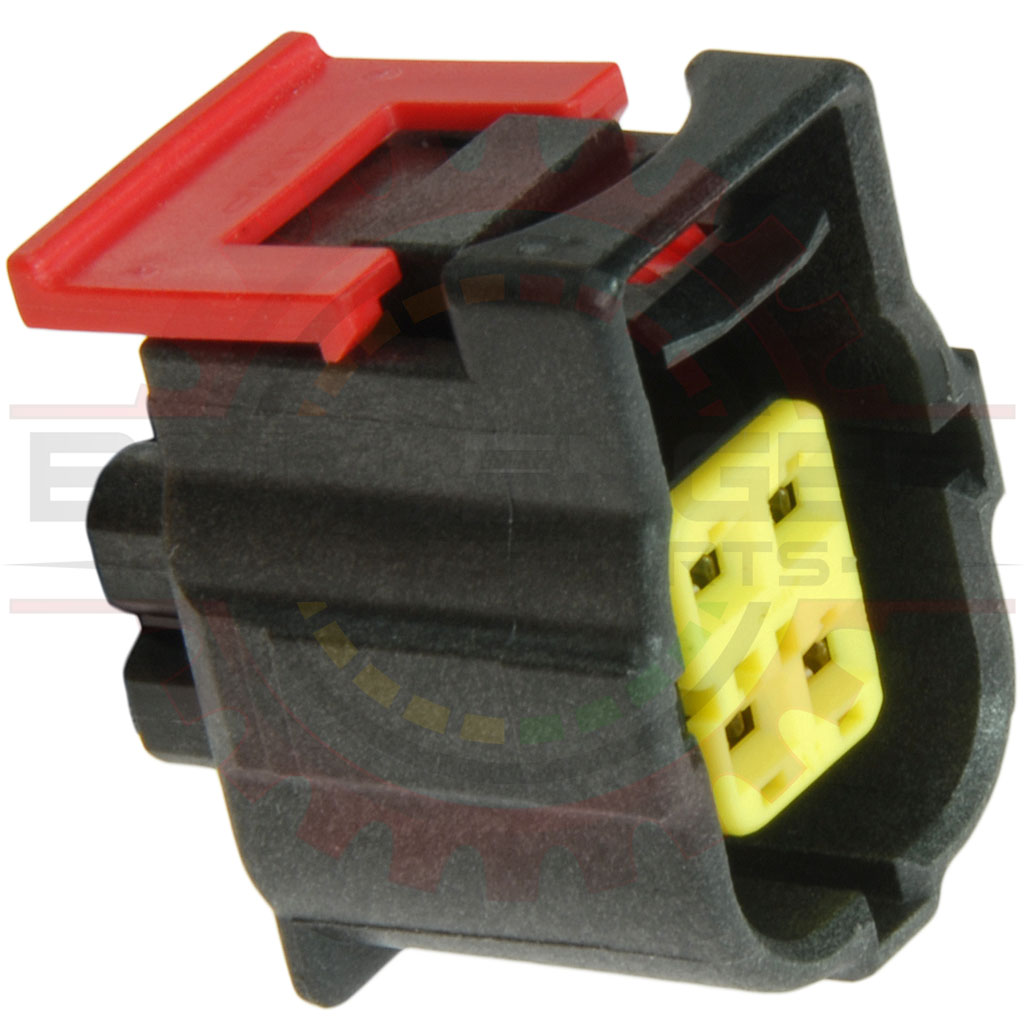

Dodge / AMP SSC straight keyway plug 4 way connector	Part # CONN-100029

Pricing
1 +	$7.99
5 +	$7.75
25 +	$7.49
50 +	$7.25
100 +	$7.99
1000 +	Call for Pricing
Information
Bmotorsports Part #	CONN-100029
Availability	In Stock
Shipping Weight	0.05 Lbs.
Shipping Location	VA (Shipping Info)
	Quantity:

Description

Dodge / AMP SSC straight keyway plug connector

Associated & Mating Parts

Relationship	Part #	Description
Associated Parts
Terminals	CONN-100033	SSC Series Female Terminals, 0.5mm2 - 2mm2 ( 20 - 14 AWG ), loose piece
Seals	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Only	CONN-100029	Dodge / AMP SSC straight keyway plug 4 way connector
Connector Kit	CONN-75630	Dodge / AMP SSC straight keyway plug connector Kit
Pigtail	CONN-85630	Dodge / AMP SSC straight keyway plug connector pigtail
Mating Parts
Terminals	CONN-100005	Econoseal J Series Male Terminals, 0.5mm2 - 1.4mm2 ( 20 - 16 AWG )
Seals	CONN-00119	Sumitomo HW / HX / DL / SL Sealed Series wire seal, green (20-16 AWG)
Connector Only	CONN-100030	Dodge / AMP SSC straight keyway receptacle 4 way connector
Connector Kit	CONN-75631	Dodge / AMP SSC straight keyway receptacle connector Kit
Pigtail	CONN-85631	Dodge / AMP SSC straight keyway receptacle connector pigtail
Extension
Connector Extension	CONN-85634	Dodge / AMP SSC Straight keyway extension

Specifications

Parameter Value
Number of Ways 4
Gender Plug/Male
Terminal Size 1.8mm
Terminal Type Flat
Min. Wire Gauge 20
Max. Wire Gauge 16

Used In

Part #	Description
CONN-75630	Dodge / AMP SSC straight keyway plug connector Kit
CONN-85630	Dodge / AMP SSC straight keyway plug connector pigtail
CONN-85634	Dodge / AMP SSC Straight keyway extension
