Description

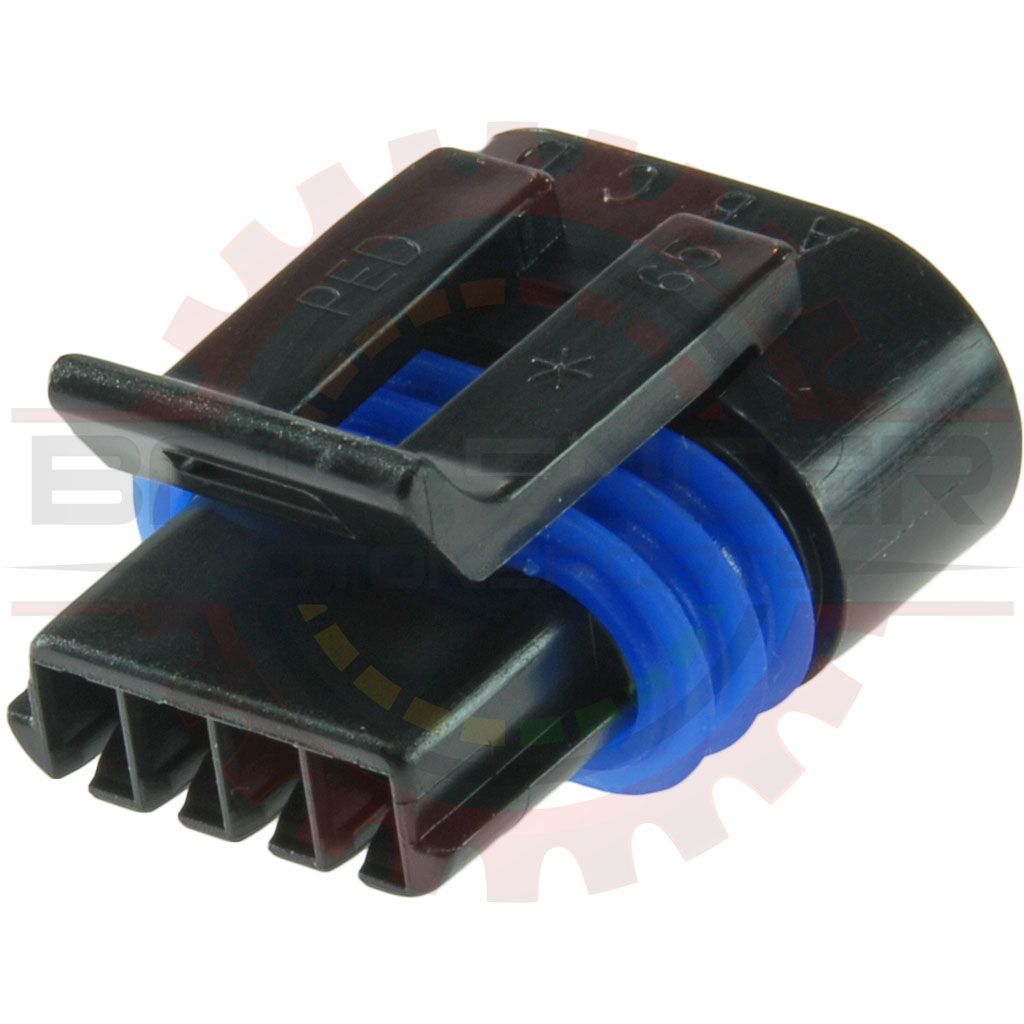

GM Delphi / Packard - 4 Way Metripack 150.2 Connector Plug assembly for IAC & MAP. Connector ONLY. Terminals not included.

Used on some idle speed control systems, idle air control valves, ignition coils, Manifold Absolute Pressure (MAP) Sensors, and fuel pumps. GM & Chrysler vehicles are the most common applications.

Associated & Mating Parts

Applications

Applications Include:

• Cummins 5.9L MAP Sensor Connector 2003-2007
• Cummins 5.9L Manifold Absolute Pressure Connector 2003-2007
• Chrysler, Dodge RAM, FCA # 05143782AA
• IAC Motor Connector on many GM applications
• Idle Air Control Motor Connector on many GM applications

Specifications

Parameter	Value
Number of Ways	4
Gender	Plug/Male
Terminal Size	1.5mm
Terminal Type	Flat
Min. Wire Gauge	22
Max. Wire Gauge	18

Part Compatibility

The following is a list of reported vehicle applications. This data is not a comprehensive listing nor guaranteed to be accurate. If you are aware of a vehicle application that is not listed or have a correction to submit please email us at sales@bmotorsports.com so that we may include it in our listings.

Year Start	Year End	Make	Model	Trim	Engine Code
0	0
1998	1998	Jeep	Grand Cherokee	limited
1998	1998	Jeep	Grand Cherokee
2003	2007	CUMMINS		5.9L
